Overview

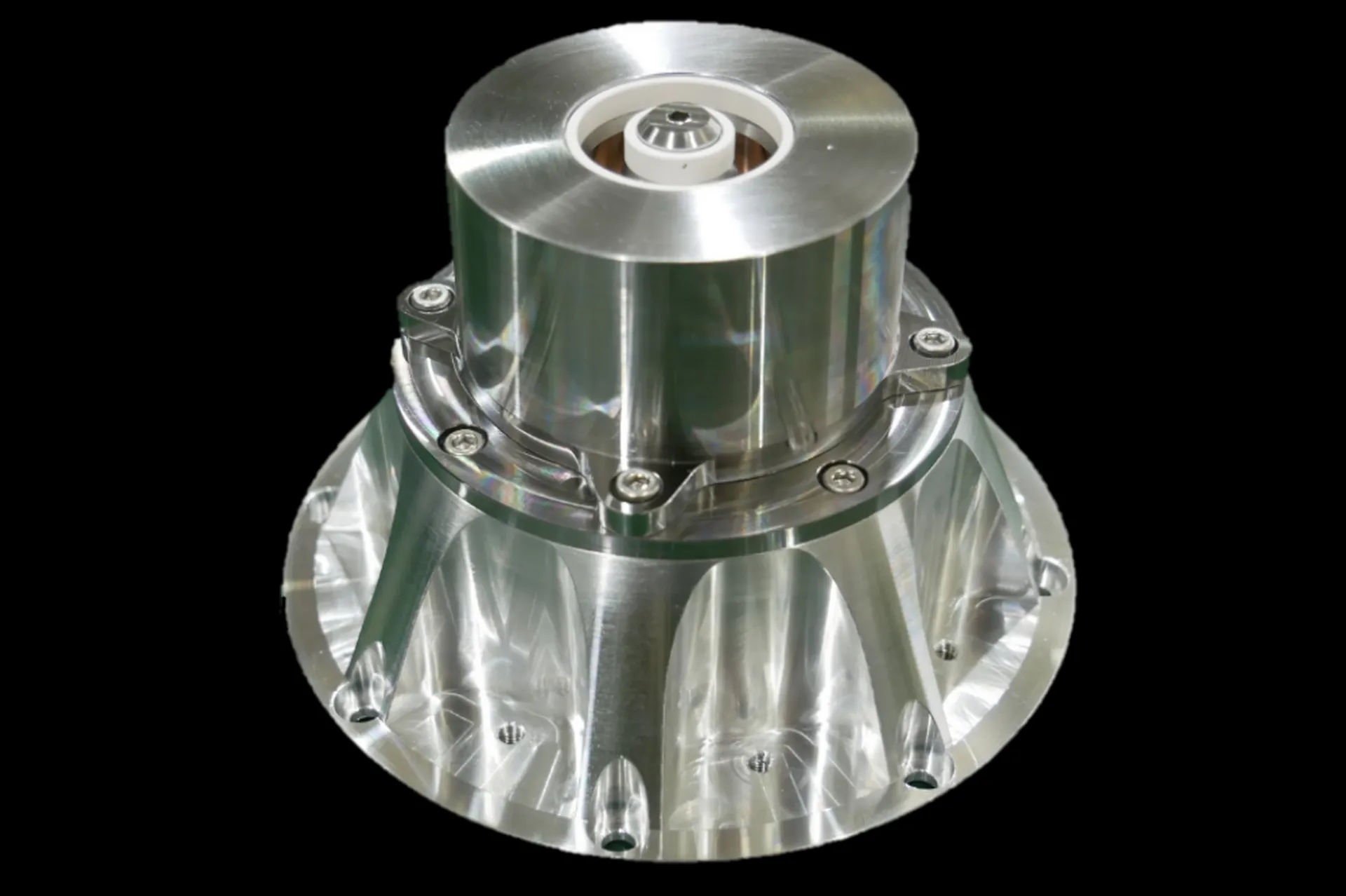

Pale Blue PBH-100 offers ideal balance of thrust and isp performances. Featuring highly reliable, proprietary Japanese microwave cathode technology, this system eliminates the typical startup delay of conventional Hall thrusters for small satellites, delivering instant, high-efficiency propulsion. It is a fully integrated system that incorporates thruster head, fluidics, PPU and propellant tank, and is flexible for a tailored configuration to meet a wide range of mission requirements. The propellant is preloaded to the tank prior to delivery from factory so that satellite integrators would not have to deal with complex fueling work.

Properties

Overview

Name
PBH-100 (Hall Thruster)
Supplier
Pale Blue
Type
Electric Propulsion System
Flight proven
No

Details

Power
110 - 180 W
Thrust
5 - 8 mN
Total Impulse
> 50k Ns
Wet Mass
< 10 kg
Envelope
300 x 300 x 150 mm
Comm. IF
RS-422
