Overview

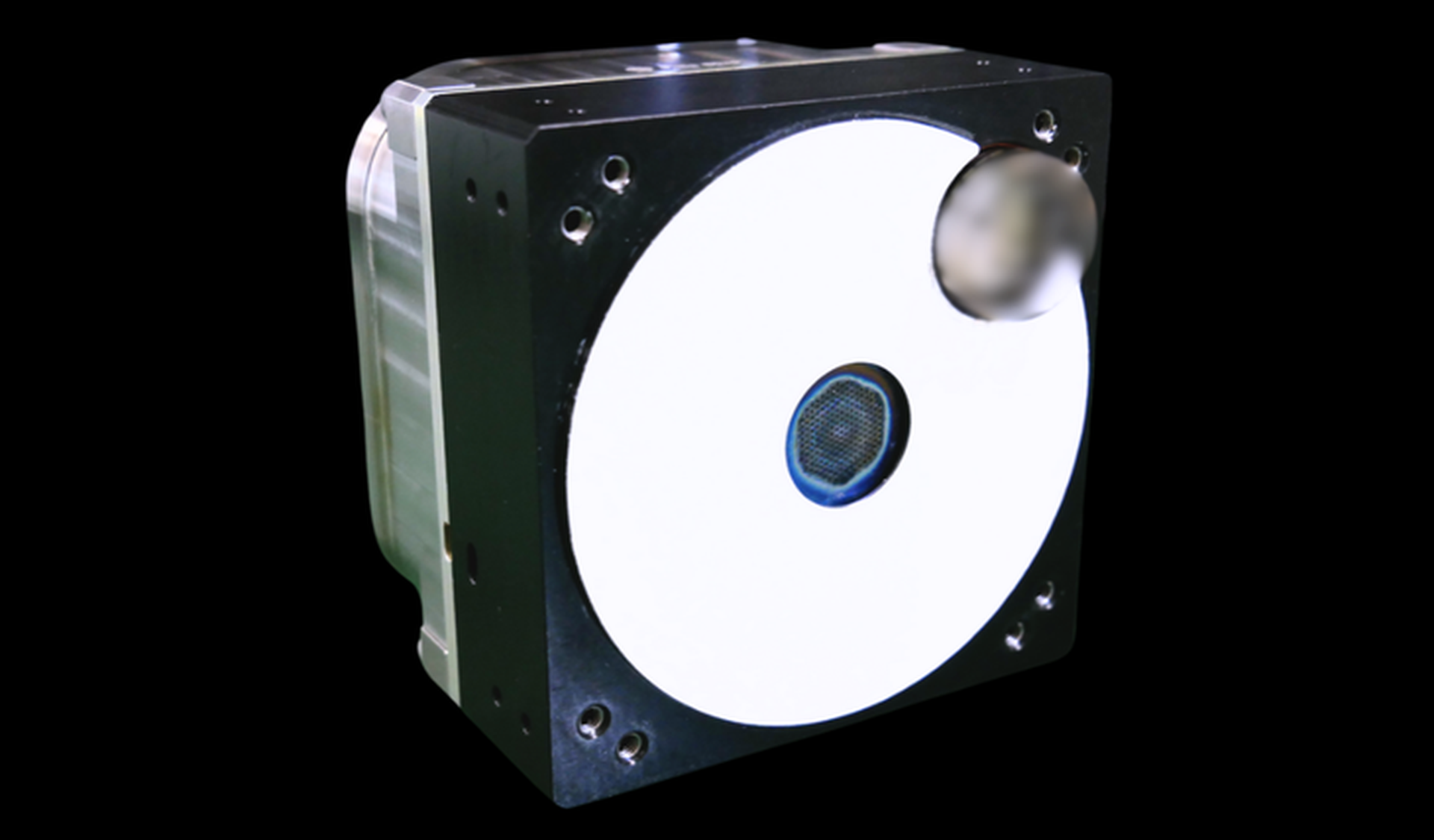

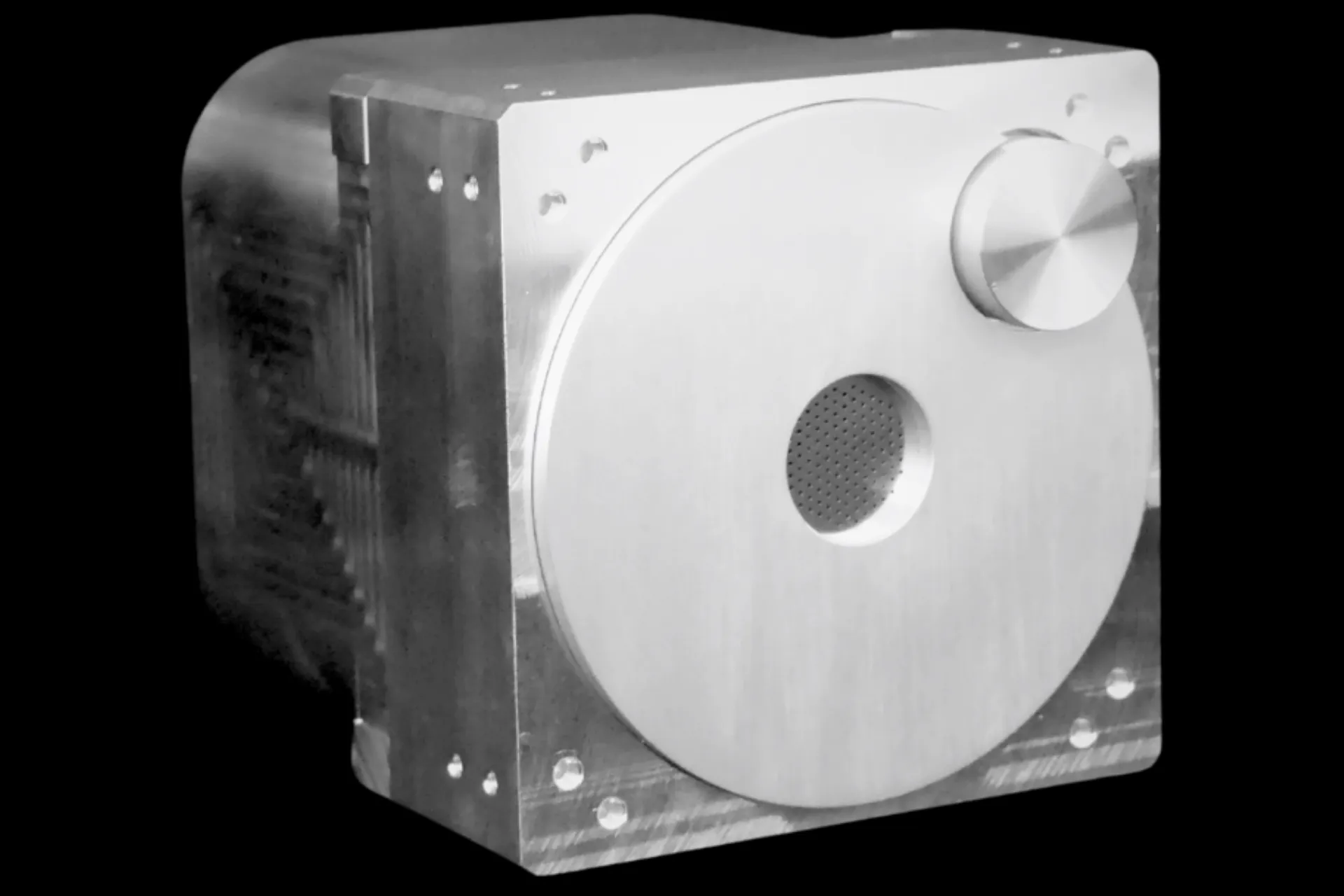

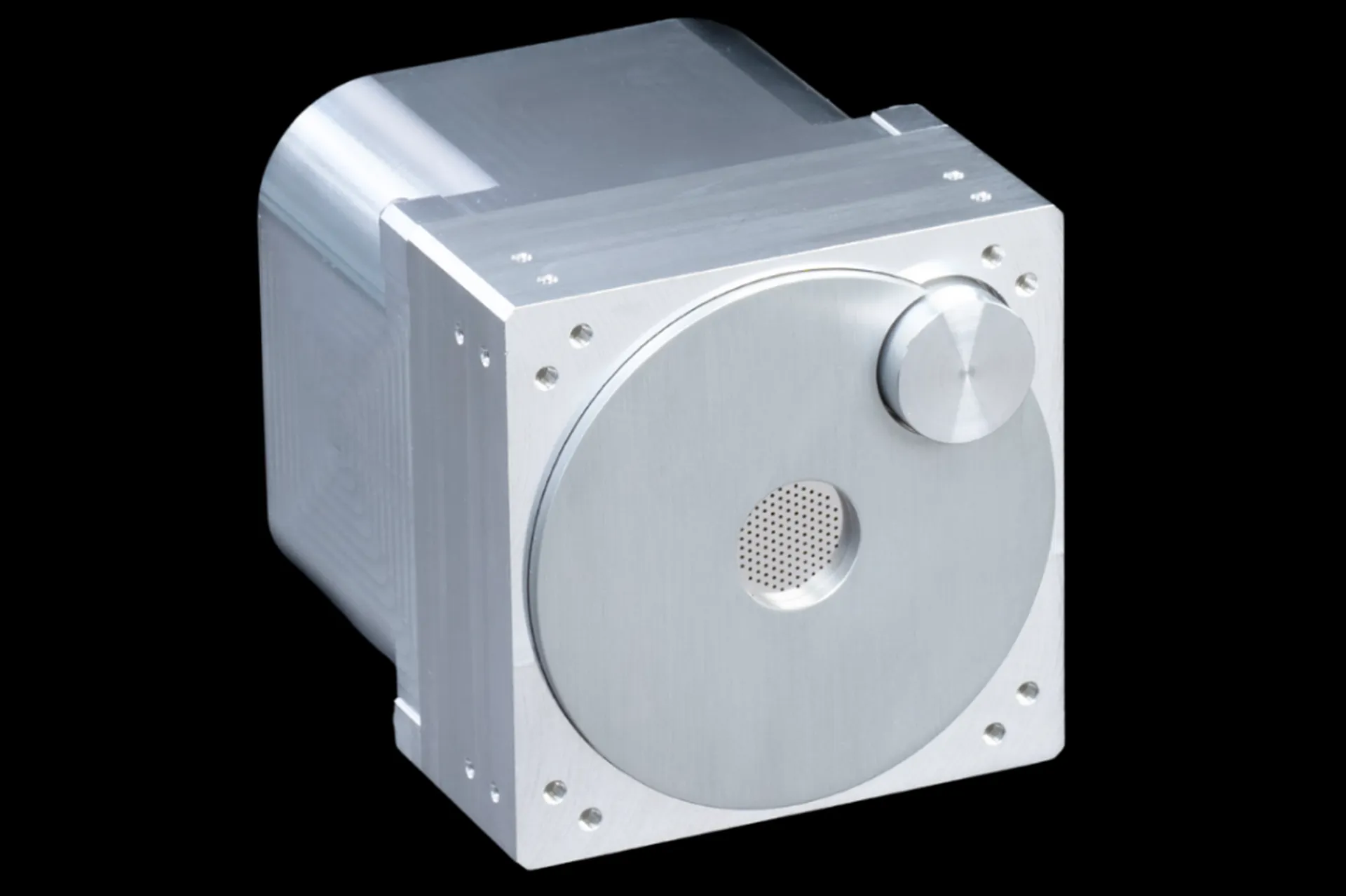

The PBI (Water Ion Thruster) is a compact 1U ion propulsion system designed to deliver an unprecedented level of total impulse, making it ideal for nanosatellites and microsatellites. The system is fully integrated, incorporating the thruster head, fluidics, electronics, and propellant tank within a single unit. Its modular and clusterable design also enables scalability across a wide range of spacecraft sizes and mission profiles.

The PBI uses water as its propellant, eliminating the need for high-pressure storage systems. The propellant is preloaded into the tank prior to factory delivery, allowing satellite integrators to avoid the complexity and operational burden associated with conventional fueling procedures.

The propulsion system achieved its first successful in-orbit deployment in June 2025, followed by a second successful launch in October 2025, where it continues to support ongoing mission operations.

Properties

Overview

Name
PBI (Water Ion Thruster)
Supplier
Pale Blue
Type
Electric Propulsion Thruster
Flight proven
Yes

Details

Power
< 60 W
Thrust
> 0.35 mN
Total Impulse
> 7000 Ns
Wet Mass
< 1.6 kg
Envelope
1 U+
Comm. IF
RS-422
