Overview

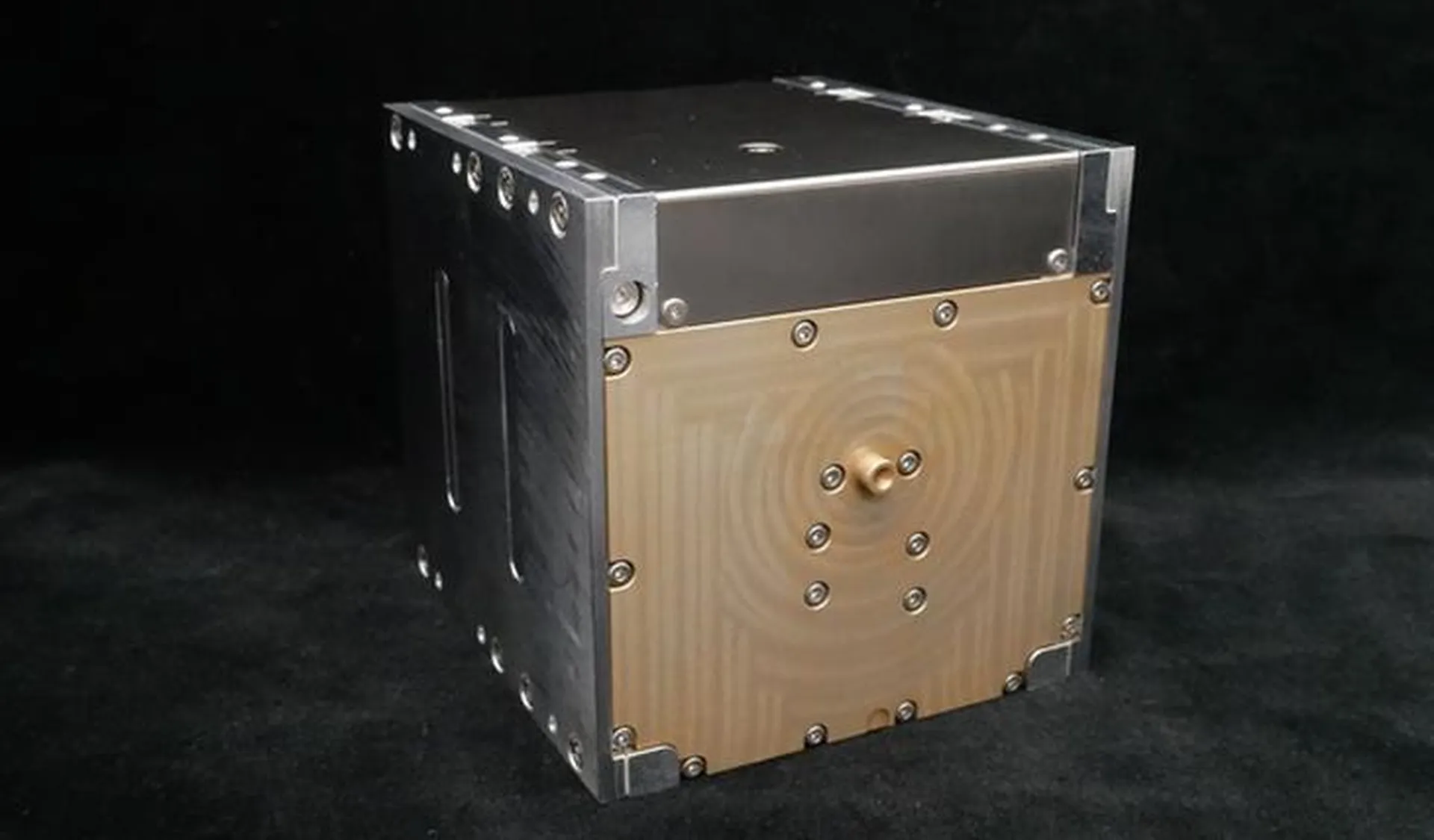

PBR-20 (Water Resistojet Thruster) is a miniaturized water vapor propulsion system in a 1U form factor, optimal for 6U-8U cubesats. It is a fully integrated system that incorporates thruster head, fluidics, electronics and propellant tank, and is clusterable to meet a wide range of spacecraft sizes. The PBR-20 uses water as propellant and does not require a high-pressure storage. The propellant is preloaded to the tank prior to delivery from factory so that satellite integrators would not have to deal with complex fueling work. The propulsion system first operated in low earth orbit in March 2023 and confirmed the soundness by operating again in January 2025 onboard Sony's first satellite, "EYE."
Properties
Overview
- Name
- PBR-20 (Water Resistojet Thruster)
- Supplier
- Pale Blue
- Type
- Electric Propulsion System
- Flight proven
- Yes
Details
- Power Consumption
- Off = 0 WNominal = 20 W
- Wet Mass
- < 1.5 kg
