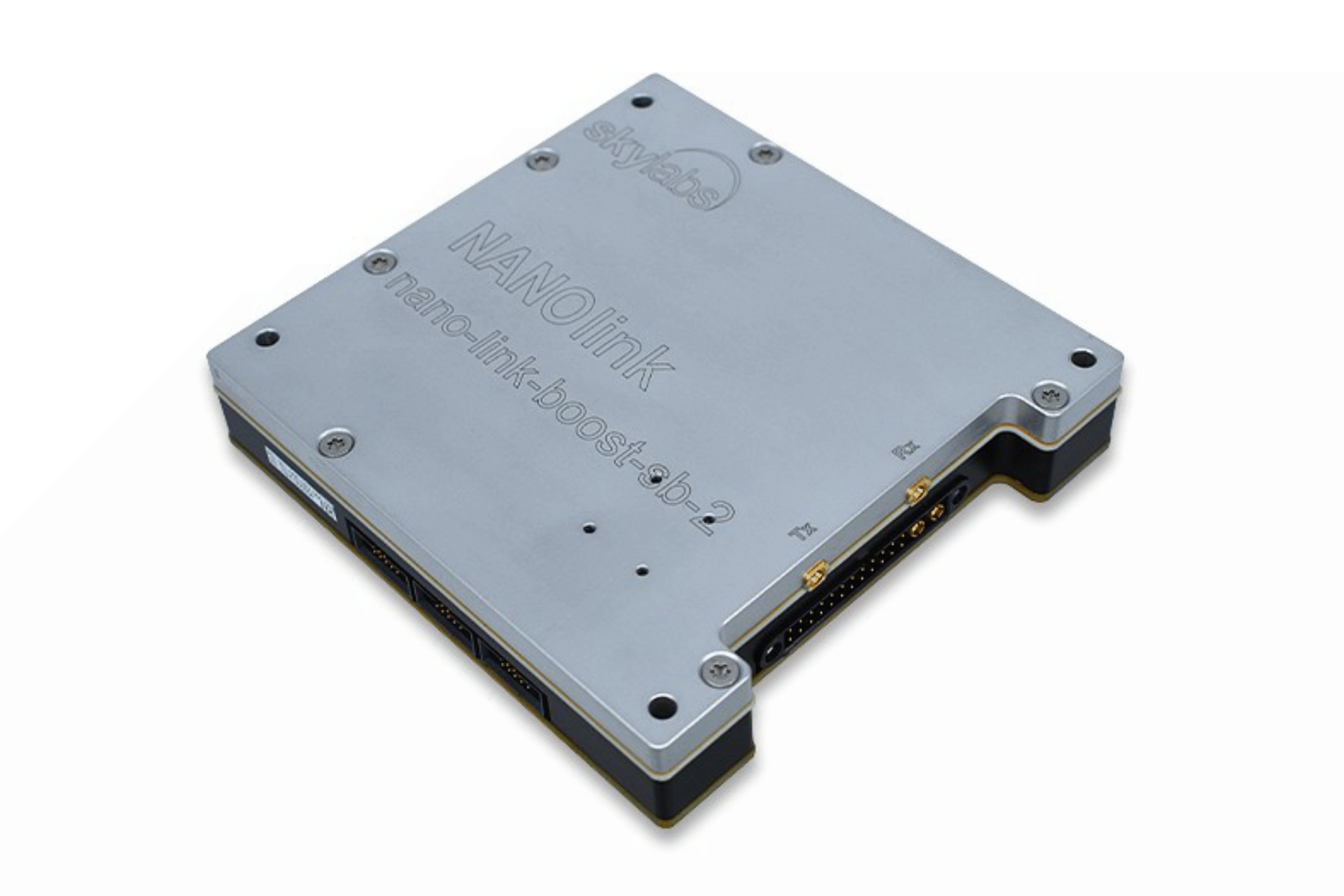

The NANOlink(-S)-boost is a highly miniaturized full-duplex TM/TC satellite communication subsystem, equipped with an additional efficient integrated amplifier, and an optional built-in encryption system that provides a high level of security between the satellite and the ground station (GS). Several intelligent built-in functions enable the NANOlink(-S)-boost to operate as a fully autonomous system, facilitating the streamlined acquisition of satellite diagnostic data.

The optional security features (-S) utilize the CCSDS Space Data Link Security protocol. Additionally, the NANOlink(-S)-boost supports the symmetric AES-GCM-256 authenticated encryption algorithm and accommodates multiple encryption keys, making it a key subsystem in NANOsky avionics. SkyLabs end-to-end communication solution combines satellite command, monitor and management and payload data reception with SkyEGSE-comm SDR modem based on comprehensive NANOsky CMM software development kit.

KEY FEATURES

• Best SWaP-optimized product in its class

• CCSDS compliant S-band full duplex transceiver

• Software Defined Radio architecture • Advanced FDIR supervision functionality of SDR functionality

• RF output power: Up to 37 dBm (5 W)

• Frequency band: -Tx 2.200 - 2.300 GHz -Rx 2.025 - 2.110 GHz

• Input sensitivity -95 dBm @ 4 Mbps OQPSK

• Data rates: Up to 4 Mbps @ 2.5 MHz (OQPSK) Adjustable data rate in flight

• Interface: Redundant CAN-TS and LVDS-TS

• Power consumption: 17 W (Rx + Tx @ 5W RF output power) 1.9 W (Rx only)

• Comprehensive housekeeping telemetry (voltages, currents, temperatures,...)

• Security (optional)

  -Encryption: AES-GCM-256

  -CCSDS 355.0-B-2: SDLP -CCSDS 355.1-B-1: SDLP-EP

• Redundant CAN for TM/TC • Additional PA to boost RF output power
