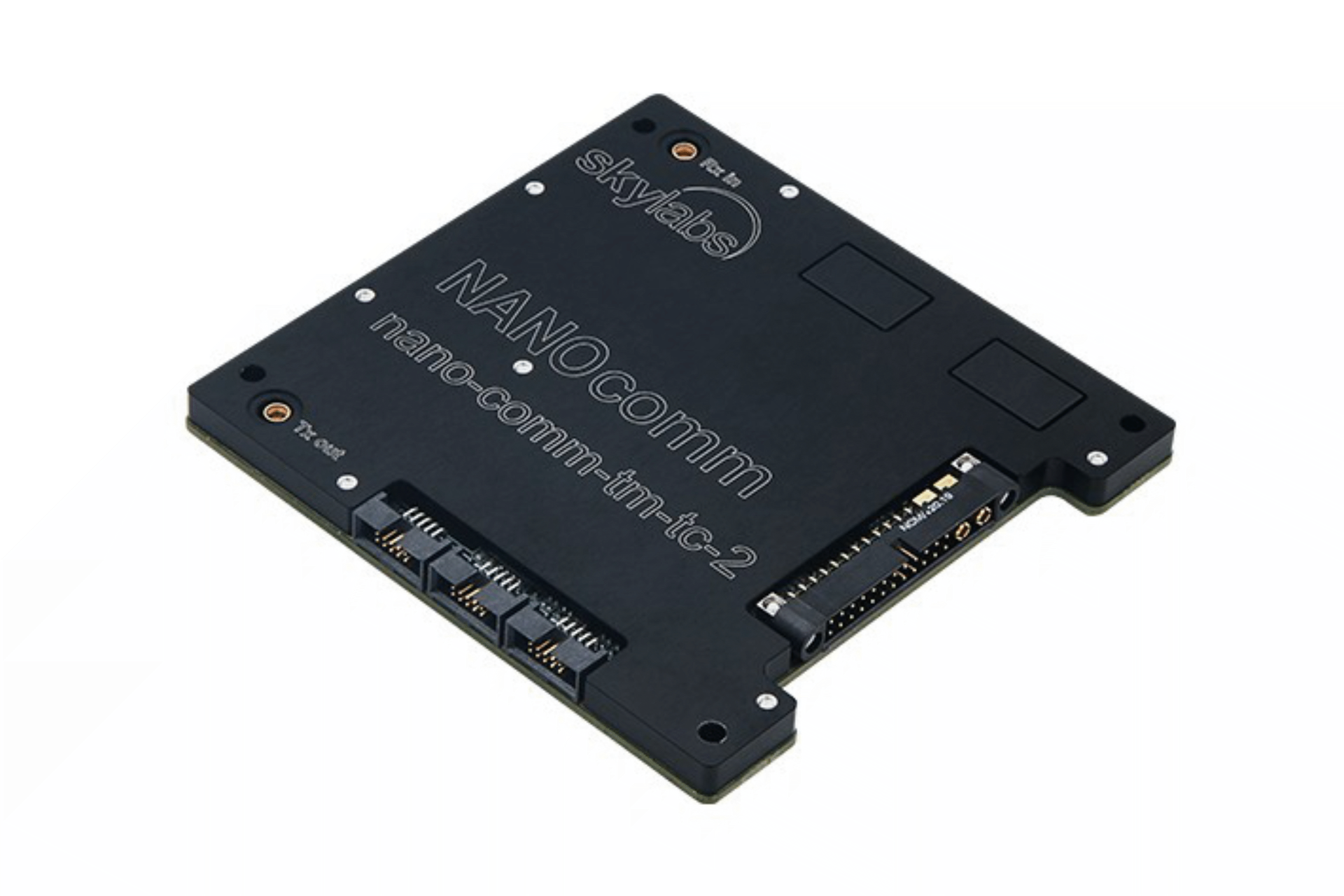

NANOcomm-2 is a highly miniaturised full-duplex TM/TC satellite communication subsystem. Its best-in-class SWaP characteristics assure the NANOcomm-2 outstanding performance for the emerging space market. Powered by PicoSkyFT, the NANOcomm-2 features embedded intelligence that directly enhances the overall functionality of the satellite system. Several intelligent built-in functions enable the NANOcomm-2 to operate as a fully autonomous system, facilitating the streamlined acquisition of satellite diagnostic data. SkyLabs end-to-end communication solution combines satellite command, monitor and management and payload data reception with SkyEGSE-comm SDR modem based on comprehensive NANOsky CMM software development kit.

KEY FEATURES

• Best SWaP-optimized product in its class

• CCSDS compliant UHF and VHF full-duplex transceiver

• Two independent RF transceivers chains for superior reliability

• RF output power: Up to 31 dBm

• Input sensitivity -111 dBm @ 10% PER (GMSK 9600bps) LNA on the receive path

• Frequency band: 420 - 450 MHz / 130 – 200 MHz

• Data rates: Up to 25 kbps @ 25 kHz (GFSK) Adjustable data rate in flight

• Baseband bandwidth: 12 kHz, 18 kHz, 25 kHz

• Interface: Redundant CAN-TS

  - RF Tx out (SMPM connector)

  - RF Rx in (SMPM connector)

• Power consumption:

  - Up to 5 W (Rx + Tx @ 31 dBm output power)

  -Up to 1.3 W (Rx only)
