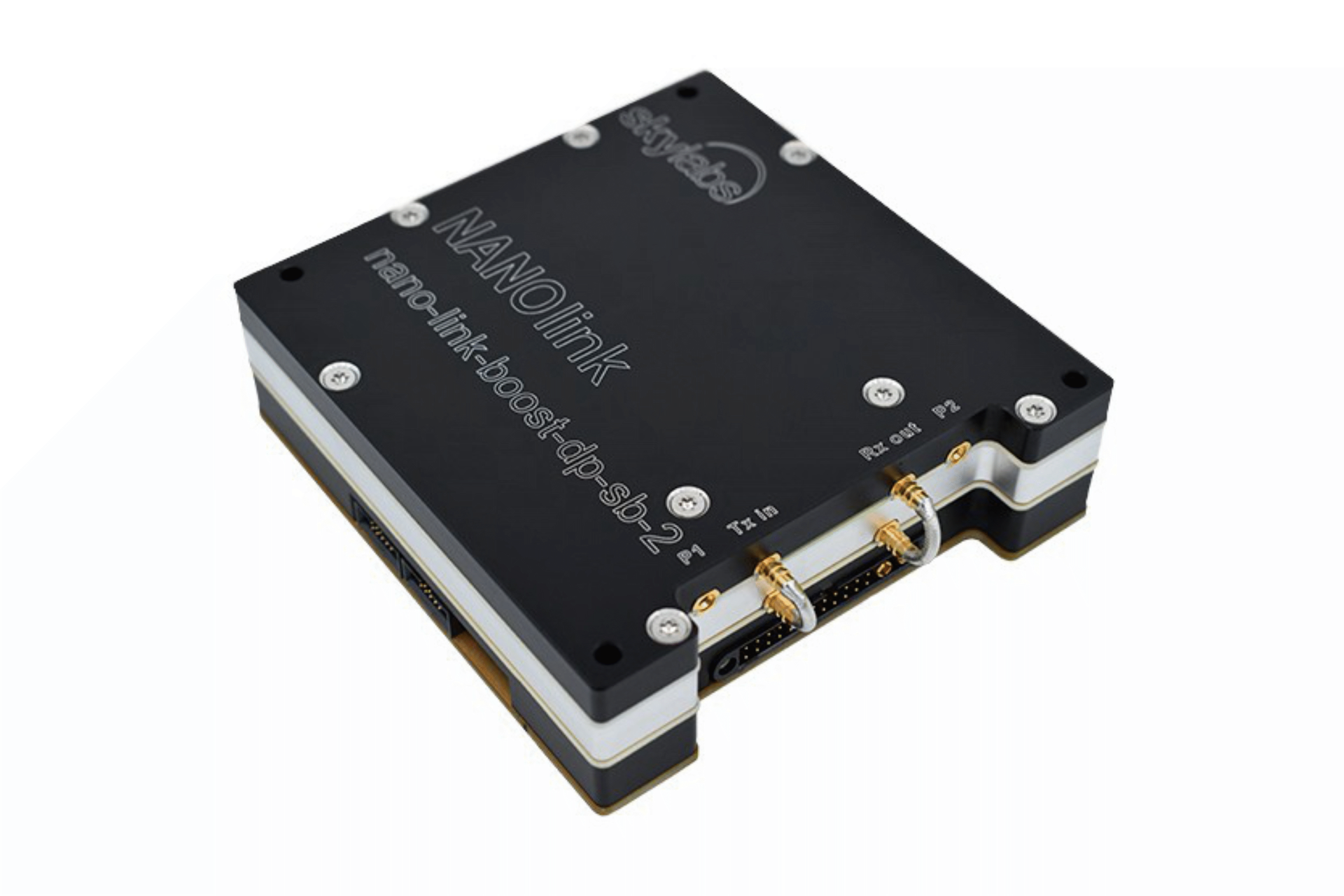

The NANOlink(-S)-boost-dp is a highly miniaturized full-duplex TM/TC satellite communication subsystem, equipped with an additional efficient integrated amplifier, a sophisticated two antenna port splitter/combiner, and an optional built-in encryption system that provides a high level of security between the satellite and the ground station (GS). Several intelligent built-in functions enable the NANOlink(-S)-boost-dp to operate as a fully autonomous system, facilitating the streamlined acquisition of satellite diagnostic data. The optional security features (-S) utilize the CCSDS Space Data Link Security protocol. Additionally, the NANOlink(-S)-boost-dp supports the symmetric AES-GCM-256 authenticated encryption algorithm and accommodates multiple encryption keys, making it a key subsystem in NANOsky avionics. SkyLabs end-to-end communication solution combines satellite command, monitor and management and payload data reception with SkyEGSE-comm SDR modem based on comprehensive NANOsky CMM software development kit. KEY FEATURES • Best SWaP-optimized product in its class • CCSDS compliant S-band full duplex transceiver • Software Defined Radio architecture • Advanced FDIR supervision functionality of SDR functionality • RF output power: Up to 31.5 dBm (1.4 W) per antenna port • Frequency band: -Tx 2.200 - 2.300 GHz -Rx 2.025 - 2.110 GHz • Input sensitivity -86 dBm @ 4 Mbps OQPSK • Data rates: Up to 4 Mbps @ 2.5 MHz (OQPSK) Adjustable data rate in flight • Interface: Redundant CAN-TS and LVDS-TS • Power consumption: 17 W (Rx + Tx @ 1.4 W per each antenna) • Security (optional) • Encryption: AES-GCM-256 • CCSDS 355.0-B-2: SDLP • CCSDS 355.1-B-1: SDLP-EP • Comprehensive housekeeping telemetry (voltages, currents, temperatures,...) • Redundant CAN for TM/TC • Additional PA to boost RF output power • Integrated diplexer interfaces to the splitter/combiner on two antenna ports • Integrated additional RX filter coupled with an LNA
