Overview

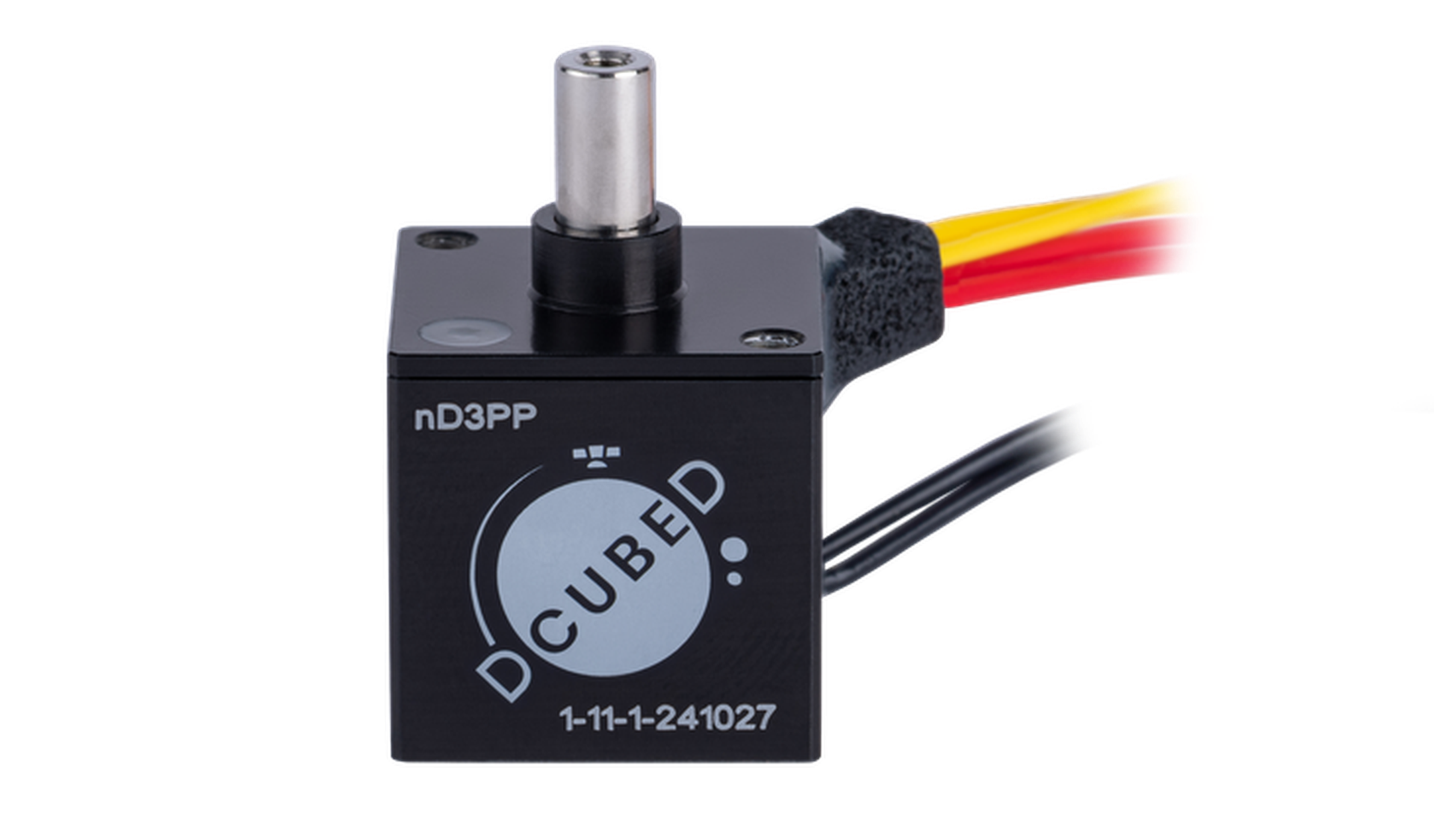

Compact, linear actuator with space heritage providing a smooth and reliable trigger on orbit. The Dcubed Nano Pin Puller (nD3PP), available in Stainless Steel or Aluminum, is a Shape Memory Alloy (SMA) based release actuator which locks sensitive equipment during launch and safely releases it on orbit. It is one of the smallest, yet powerful space-qualified HDRM solutions on the market. Moreover, it is easily field-resettable, easy-to-use, and readily available as a COTS part. Check out how to trigger and easily reset the Dcubed Nano Pin Puller nD3PP here: https://bit.ly/D3YT-nD3PP-AL **Key Features** Front and Rear Field Resettable in Seconds, up to 100 times Short Delivery Time (6-8 weeks) Fully Redundant Actuation Space Heritage (TRL 9) Smart SMA Trigger Ultra Low Shock Actuation Sensor Shear Load (Release Load) >50 N Proof Load: 85 N Push-in Load, 300 N Sideload Body Size: 17 x 17 x 17 mm Mass: 12 grams (Aluminum-Titanium) or 25 grams (Stainless Steel) Temperatures: -65°C to +75°C Customizable Interfaces **Export Control** The Dcubed Nano Pin Puller (nD3PP) is ITAR Free.
Properties
Overview
- Name
- Nano Pin Puller (nD3PP)
- Supplier
- Dcubed
- Type
- Pin Puller & Pin Pusher
- Flight proven
- Yes
Details
- Dry Mass
- 0.012 kg
Delivery and customization
- Lead time
- 1 months
- Customization / NRE
Unknown
