Overview

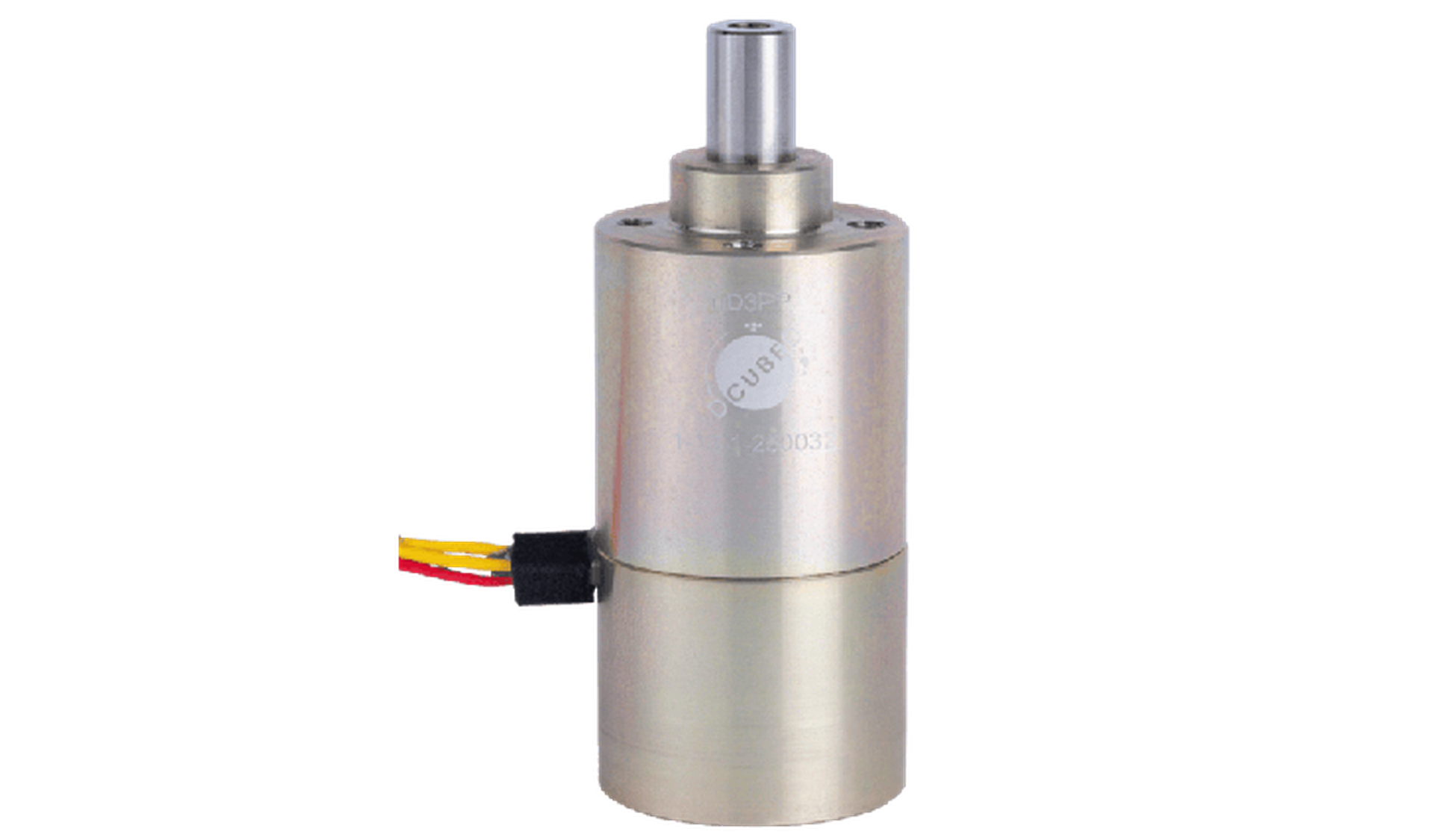

Straight forward release actuator locking mission-critical subsystems during launch and releasing them safely on orbit. The Dcubed Micro Pin Puller (uD3PP) is a Shape Memory Alloy (SMA) based release actuator which locks sensitive equipment during launch and safely releases it on orbit. It is one of the smallest, yet powerful HDRM solutions on the market. Moreover, it is easily field-resettable, easy-to-use and readily available as a COTS component. Check out how to trigger and easily reset the Dcubed Micro Pin Puller uD3PP here: https://bit.ly/Dcubed-uD3PP-AL **Key Features** Front and Rear Field-Resettable in Seconds, up to 100 times Short Delivery Time (10-12 weeks) Fully Redundant Actuation Smart SMA Trigger Very Low Shock Shear Load (Release Load): 120-150 N Proof Load:120 N Push-in Load (axial), 500 N Sideload (shear) Body Size: 24 x 50 x 41 mm Mass: 75-85 grams Body material: Hard anodized Aluminum 7075-T7351 Pin material: Stainless Steel 17-4PH Temperatures: -35 °C to +75 °C Actuation Sensor Customizable Interfaces **Export Control** The Dcubed Micro Pin Puller (uD3PP) is ITAR Free.

Properties
