Overview

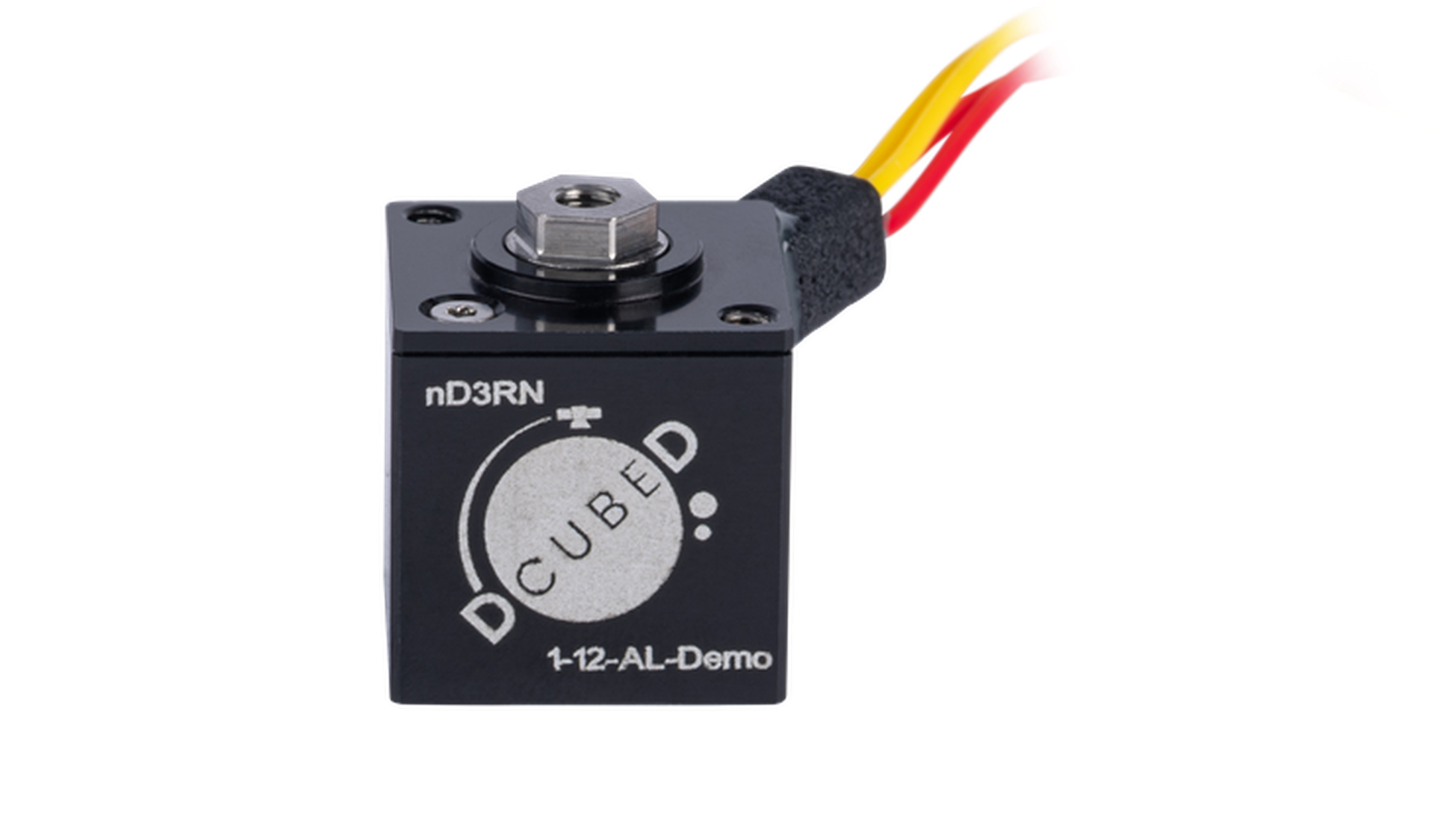

Space-proven, easy-to-use release actuator for compact space mechanisms. The Dcubed Nano Release Nut (nD3RN), available in Stainless Steel or Aluminum, is a Shape Memory Alloy (SMA) based release actuator which secures sensitive equipment during launch and safely releases it on orbit. It is one of the smallest, yet powerful HDRM solutions on the market. Moreover, it is easily resettable, easy-to-use and readily available as a COTS part. Check out how to trigger and easily reset the Dcubed Nano Release Nut nD3RN here: https://bit.ly/D3YT-nD3RN-AL **Key Features** On-Ground and In-Space Resettable in Seconds, up to 100 times Short Delivery Time (6-8 weeks) Fully Redundant Actuation Space Heritage (TRL 9) Smart SMA Trigger Ultra Low Shock Axial Load (Release Load) 250-380 N Proof Load: 500 N Pull-out, 1500 N Shear Body Size: 17 x 17 x 17 mm Mass: 12 grams (Aluminum-Titanium) or 25 grams (Stainless Steel) Temperatures: -65°C to +75°C Customizable Interfaces **Export Control** The Dcubed Nano Release Nut (nD3RN) is ITAR Free.
Properties
Overview
- Name
- Nano Release Nut (nD3RN)
- Supplier
- Dcubed
- Type
- Separation Nut
- Flight proven
- Yes
Details
- Dry Mass
- 0.012 kg
Delivery and customization
- Lead time
- 1 months
- Customization / NRE
Unknown
