Overview

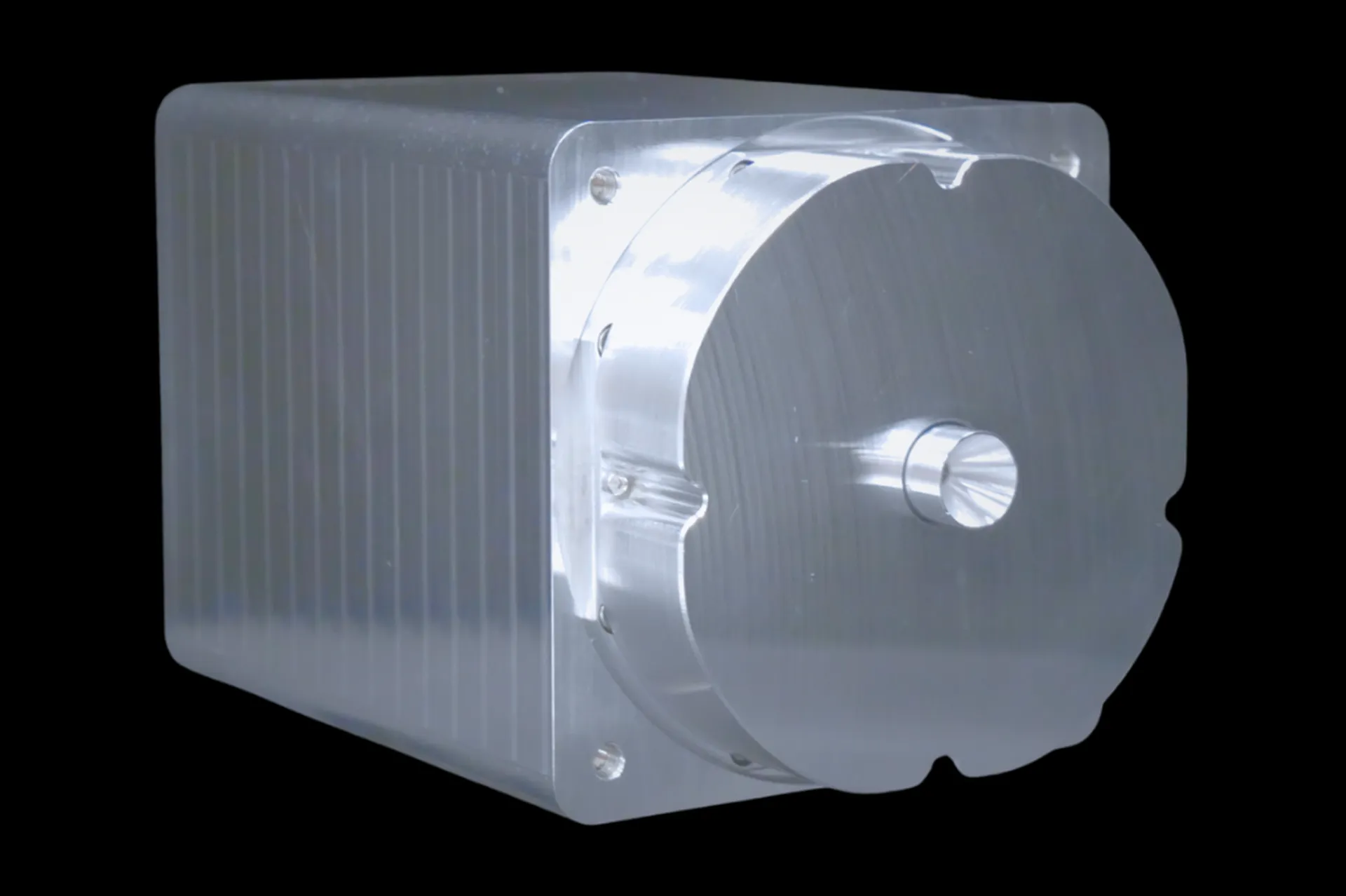

Pale Blue PBR-30 is a fully integrated propulsion system built on our flight-proven resistojet thruster technology. Designed in a compact 2U form factor, the system delivers exceptional performance, providing up to 12 mN of thrust at 35W, with optional throttling capability down to 3 mN at just 10W. It is delivered pre-filled and remains non-pressurized during launch, ensuring a non-hazardous payload and eliminating complex launch-site propellant handling.

Properties

Overview

Name
PBR-30 (Resistojet Thruster)
Supplier
Pale Blue
Type
Electric Propulsion Thruster
Flight proven
No

Details

Power
10 - 35 W
Thrust
3 - 12 mN
Total Impulse
> 400 Ns
Wet Mass
< 2.1 kg
Envelope
2U
Comm. IF
RS-422
