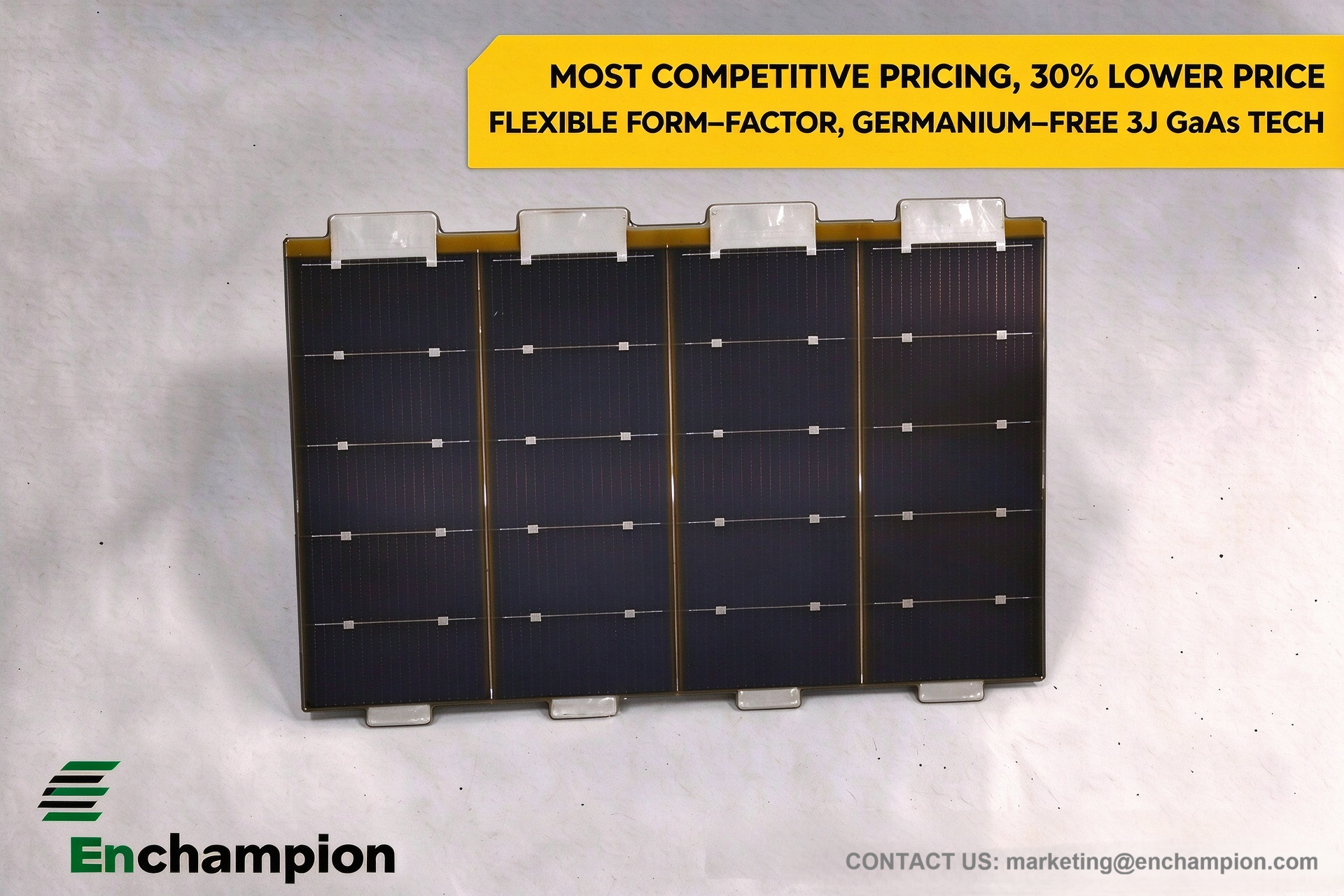

Engineered with IMM triple-junction GaAs solar cells, our modules combine 35 μm ultra-thin bendable wafers (minimum bending radius 35 mm) and ultra-low areal weight, reaching ≥30%AM0 efficiency for rectangular cells and ≥28% for irregular cells. Capable of steady operation at -90℃ to +80℃, they offer flexible, semi-rigid and rigid customizable modules covering sizes from 50 mm×100 mm to 1 m×2 m for diverse aerospace and near-space applications.

Module Size

50 mm × 100 mm to 1 m × 2 m, customizable

Typical Configuration

3S1P, 65S1P, 15S5P, 26S8P, 26S30P, 45S46P, customizable

Encapsulation

Individual cells and their series/parallel circuitry are fully encapsulated within thin-film encapsulation material; positive and negative terminals output via leads

Customization

Any size and series/parallel topology available upon request
