Overview
Model 1：F-IMM-2040
Base Material: GaInP / GaAs / InGaAs
AR Coating: TiO₂ / Al₂O₃
Min. Bending Radius: ≤ 35 mm
Operating Temperature: -90℃ ~ +80℃
Shape: Rectangular
Dimension (mm): 20.8 × 40.8
Thickness (μm): 45 ± 10
Area (cm²): 8.49
Areal Density (mg/cm²): ≤ 25.3
Avg. Efficiency (AM0): ≥ 30%
Avg. Efficiency (AM1.5): ≥ 32%
Model 2：F-IMM-4080
Base Material: GaInP / GaAs / InGaAs
AR Coating: TiO₂ / Al₂O₃
Min. Bending Radius: ≤ 35 mm
Operating Temperature: -90℃ ~ +80℃
Shape: Irregular
Dimension (mm): 40.0 × 80.0
Thickness (μm): 35 ± 5
Area (cm²): 30.25
Areal Density (mg/cm²): ≤ 24.0
Avg. Efficiency (AM0): ≥ 28%
Avg. Efficiency (AM1.5): ≥ 29%
Properties
Overview
- Name

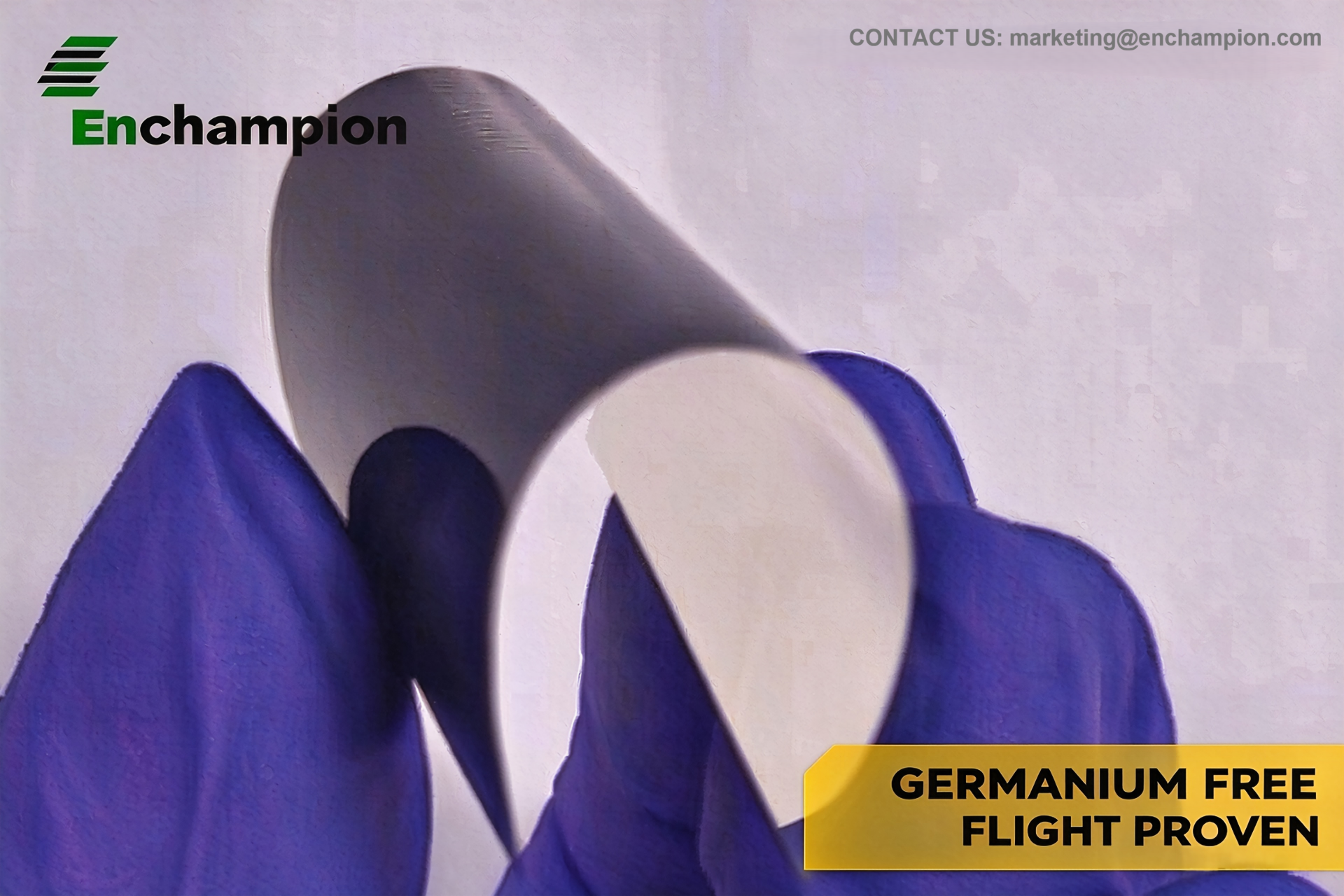

- Flexible IMM Triple-Junction GaAs Solar Cell for Space
- Supplier
- Enchampion
- Type
- Solar Cell
- Flight proven
- Yes
