Overview

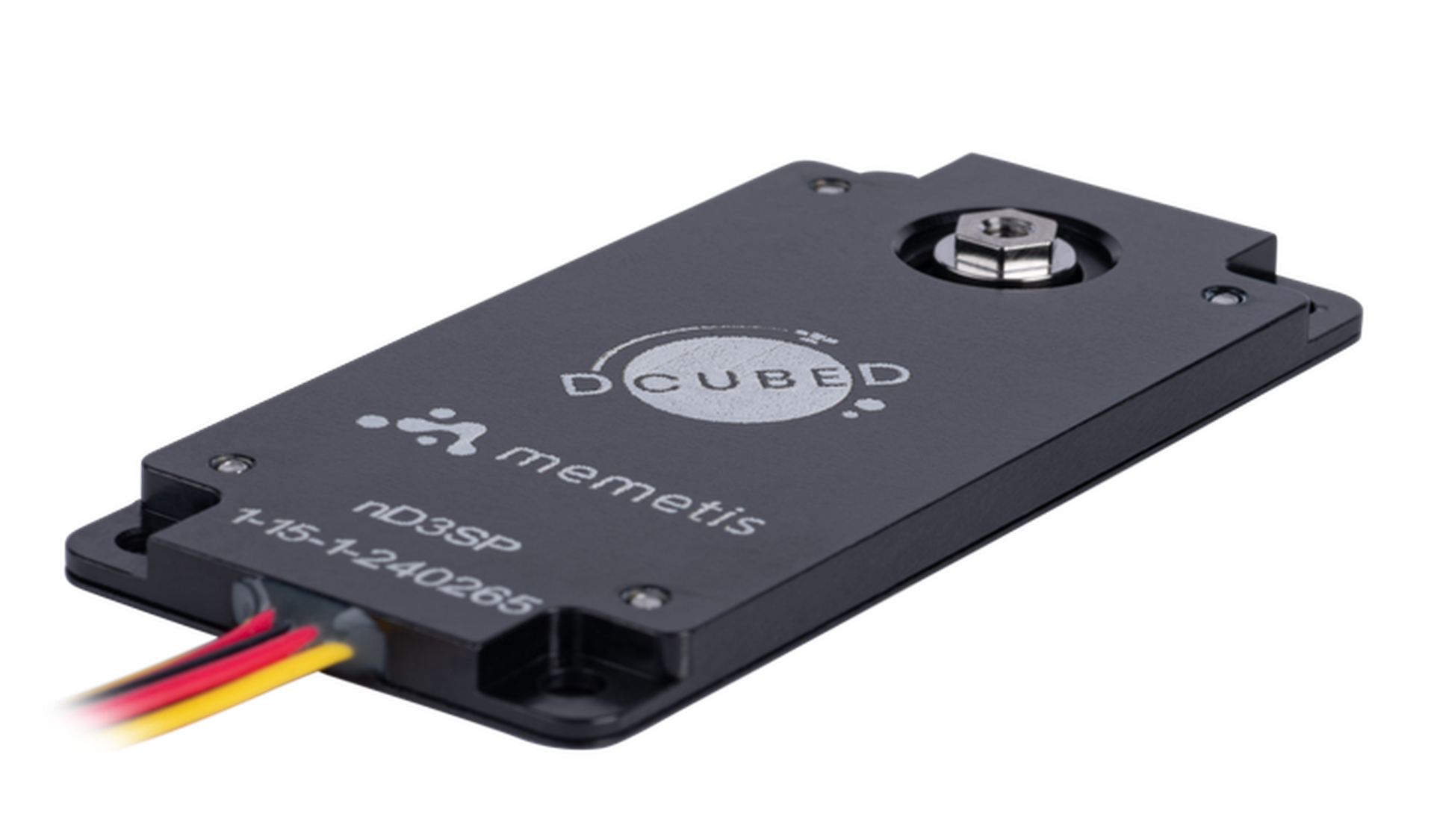

Ultra-flat shape-memory release actuator made to secure most delicate space mechanism and deployables during their ride to space. The Dcubed Nano SmartPack Release Nut (nD3SP) is a Shape Memory Alloy (SMA) based release actuator which locks sensitive equipment during launch and safely releases it on orbit. It is one of the flattest, yet powerful HDRM solutions on the market. Moreover, it is easily resettable, easy-to-use and readily available as a COTS component. Check out how to trigger and easily reset the Dcubed Nano SmartPack Release Nut nD3SP here: https://bit.ly/D3YT-nD3SP-AL **Key Features** Field-Resettable in Seconds, up to 400 times Short Delivery Time (8-10 weeks) TRL 9 Fully Redundant Actuation Smart SMA Trigger Ultra Low Shock Actuation Sensor Axial Load (Release Load) >200N Ultimate Load Rating: 500 N Pull-out, 1500 N Shear Body Size: 74 x 35 x 4mm Mass: 27 grams Body and Nut material: Hard anodized Aluminum 7075-T6 Temperatures: -65°C to +75°C **Export Control** The Dcubed Nano SmartPack Release Nut (nD3SP) is ITAR Free.
Properties
Overview
- Name
- Nano SmartPack Release Nut (nD3SP)
- Supplier
- Dcubed
- Type
- Separation Nut
- Flight proven
- Yes
Details
- Dry Mass
- 0.027 kg
Delivery and customization
- Lead time
- 1 months
- Customization / NRE
Unknown
