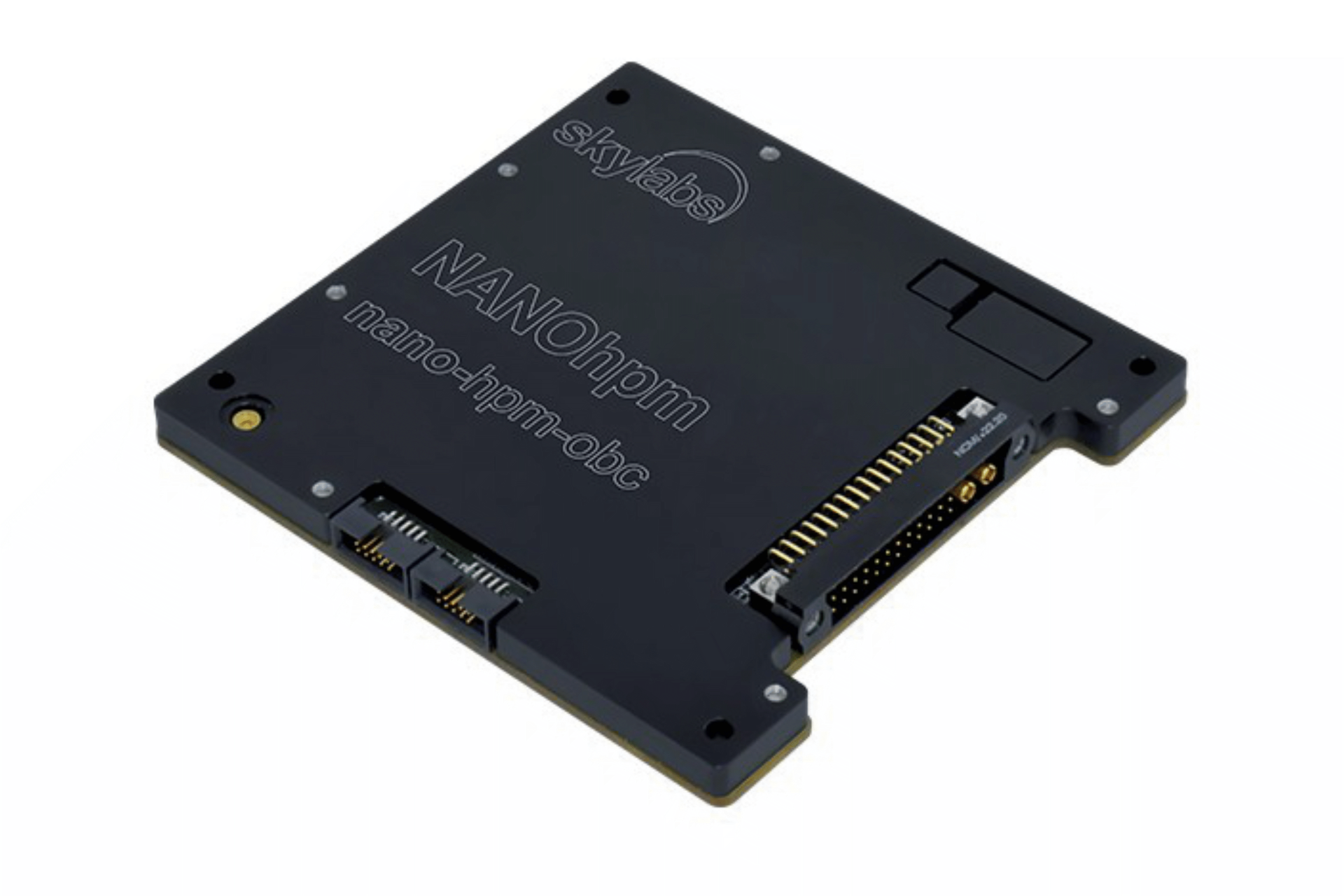

The NANOhpm-obc is a high-performance RISC-V on-board computer, designed for most demanding LEO applications. NANOhpm-obc provides a versatile design in terms of variety of resources and available interfaces. The NANOhpm-obc is built on a robust NANOobc architecture, enhanced with significantly greater processing power, delivering 100 DMIPS at 50 MHz. It delivers Fault Tolerant NOEL-V processor (Cobham Gaisler - CAES) in peripheral rich SoC design. The NANOhpm-obc is delivered with flight proven NANOsky CMM Firmware framework, on top which application layer functions can be developed to suit any mission needs.

KEY FEATURES

• NOEL-V 32-bit core (RV32IMAFD) with FPU

• RISC-V 32-bit architecture

• 256 MB DDR3 memory

• Mbit NMV for TM storage (unlimited read/write endurance)

• Redundant 2Gb NAND Flash for mass storage

• Redundant CAN for TM/TC

• 2x High-speed LVDS or RS422/485 channels

• 8x GPIO (with multifunction support UART/SPI/TWI and OBT trigger)

• GNSS receiver on board (GPS / GLONASS / Galileo / BDS / QZSS)
