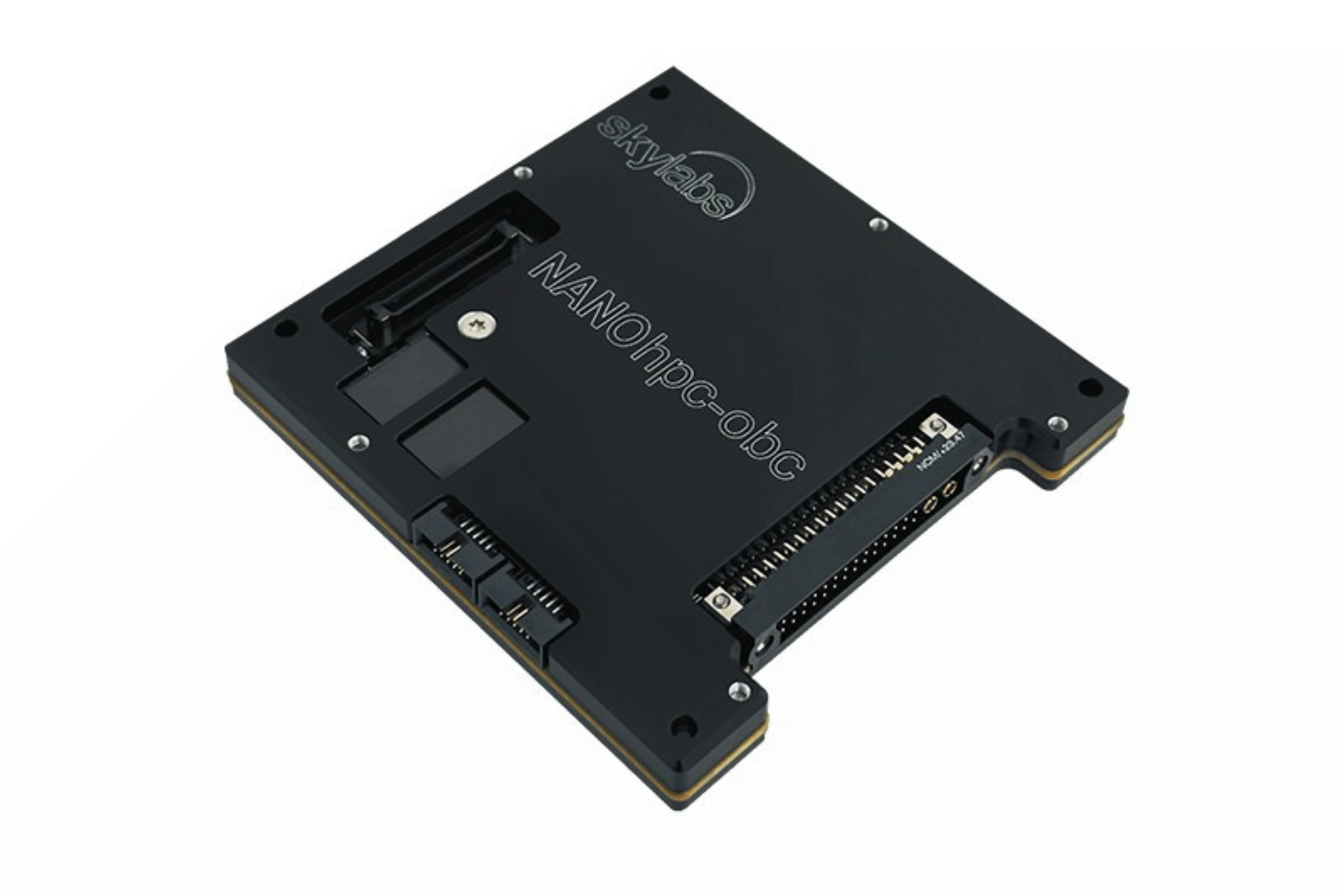

The NANOhpc-obc is a 64-bit high-performance multicore RISC-V on-board computer specifically designed for demanding LEO applications that require exceptional performance. It targets key market opportunities, including AI@Edge, situational awareness, and cybersecurity.

With a best-in-class performance-to-power ratio, the NANOhpc-obc delivers over 4000 DMIPS at 600 MHz across 4 RISC-V cores, consuming 3 W. This product pushes on-board intelligence to its limits, addressing the most challenging computational needs.

Equipped with a rich set of embedded peripherals and a coherent multicore cluster, the NANOhpc-obc supports a versatile mix of deterministic real-time systems and Linux, making it ideally suited for power-efficient embedded computing across a wide range of applications.

Expansion boards enable extra processing power in the form of AI co-processor or digital processing unit (DPU).

KEY FEATURES

• Main CPU cluster: 4x RISC-V 64-bit processors @ max 600 MHz

• Matrix Coprocessor: Single/Multi Arithmetic Accelerator for elementwise Tensor operations

• Supervisor: RISC-V monitoring core @ max 600 MHz

• Memory subsystem: 64kB L1 and 2MB L2 memory (SECDED protected) MMU with Physical memory protection

• Main memory: 2 GB LPDDR4

• Mass storage: 92 GB NAND (EDAC protected)

• TM storage: 256 kB MRAM with SECDED

• Interfaces: Redundant CAN, 4x LVDS/RS422/485/UART/16xGPIO, 2x Gigabit ETH

• Extension interface: PCIe Gen2 X4/X2 Root Port, SMBus, GPIOs

• Software: Linux (Yocto, BuildRoot),
