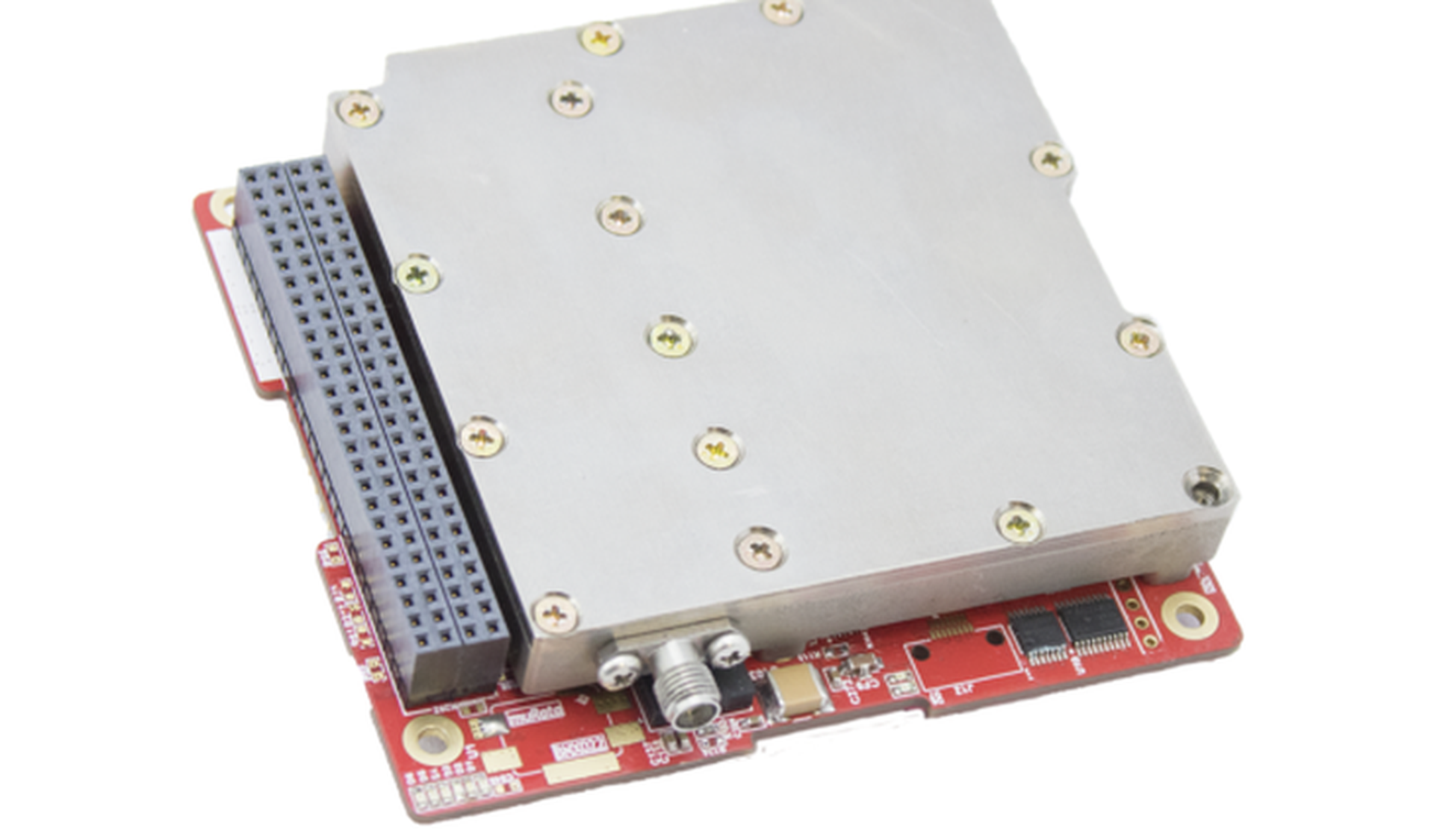

High-Performance Communication for CubeSat Missions The NANO-X is a state-of-the-art X-band transmitter developed for CubeSats and small satellite missions. It combines efficiency, configurability, and reliability in a compact PC-104 form factor, ensuring seamless communication for the most demanding space environments. KEY SYSTEM FEATURES Dynamic Configurability: Supports in-flight adjustments for frequency, output power, and channel symbol rates. Energy Efficiency: Consumes less than 15W while delivering up to 33 dBm (2W) RF output power. Advanced Modulation & Coding: Includes industry-standard CCSDS coding and modulation options such as DQPSK, QPSK, and 32-APSK. Versatile Interfaces: Integrates easily with satellite systems using RS232, RS422, CAN, LVDS, SPI, and QSPI. Compact & Lightweight: PC-104 form factor (90 x 96 x 25 mm) weighing ~250 grams. Built to Last: Operates in -30°C to +50°C ambient temperatures and withstands harsh space environments. TECHNICAL SPECIFICATIONS RF CHARACTERISTICS Frequency Range : 8.0 to 8.4 GHz (In-flight configurable) Modulation : DQPSK, QPSK, OQPSK, 8-PSK, 16-APSK, 32-APSK Channel Symbol Rate: 1M to 30M symbols/sec RF Output Power: 23 to 33 dBm (Adjustable in 1 dB steps) Frequency Stability: < 1 ppm ELECTRICAL Power Supply : 8 to 36 V (Unregulated) Power Consumption : ~14 W MECHANICAL Dimensions : 90 mm x 96 mm x 25 mm Mass : ~250 g Connectors : SMA for RF output, 104-Pin Stackable for Data and Power INTERFACES Telemetry/Command: CAN, RS232, RS422 Payload Data: RS422, LVDS, SPI, QSPI
