Overview

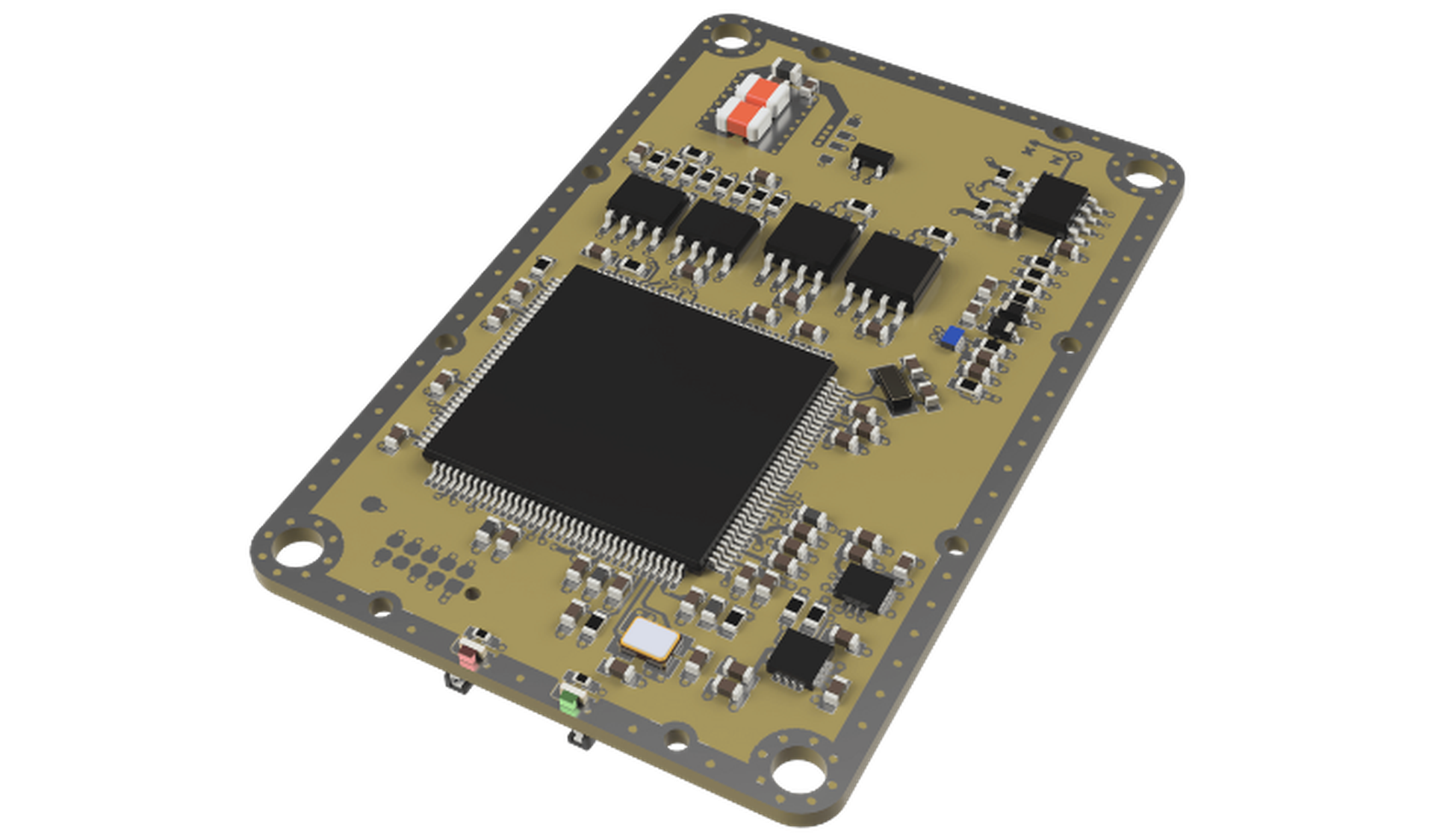

Spacemanic's Deep Thought - the On-board Computer is a high-power CubeSat OBC module suitable for nanosatellite C&DH, TT&C, mass storage, and ADCS. The radiation-tolerant, Plug-and-Play system is compatible with a wide range of CubeSat components from third-party vendors as well as typical CubeSat standards. Deep Thought is composed of a 32-bit Cortex-M7 core, rad-tolerant data storage (flash and multi-port SRAM), and an internal and external watchdog in the microcontroller for added reliability. The OBC is provided with a full compilation of software drivers and a FreeRTOS-based operating system. Key Features: - High-reliability and radiation-tolerant data storage - Robust, plug-and-play design - On-board temperature sensors - On-board gyro/acc/mag sensors - External on-board watchdog - CubeSat Space Protocol / AX.25 / KISS - Compatible with variety of commercial RTOS
Properties
Overview
- Name
- Deep Thought On-board Computer
- Supplier
- Spacemanic CZ
- Type
- Flight Computer / Onboard Computer (OBC)
- Flight proven
- Yes
Details
- Dry Mass
- 0.025 kg
- Power Consumption
- Off = 0 WNominal = 0.1 W
