Overview

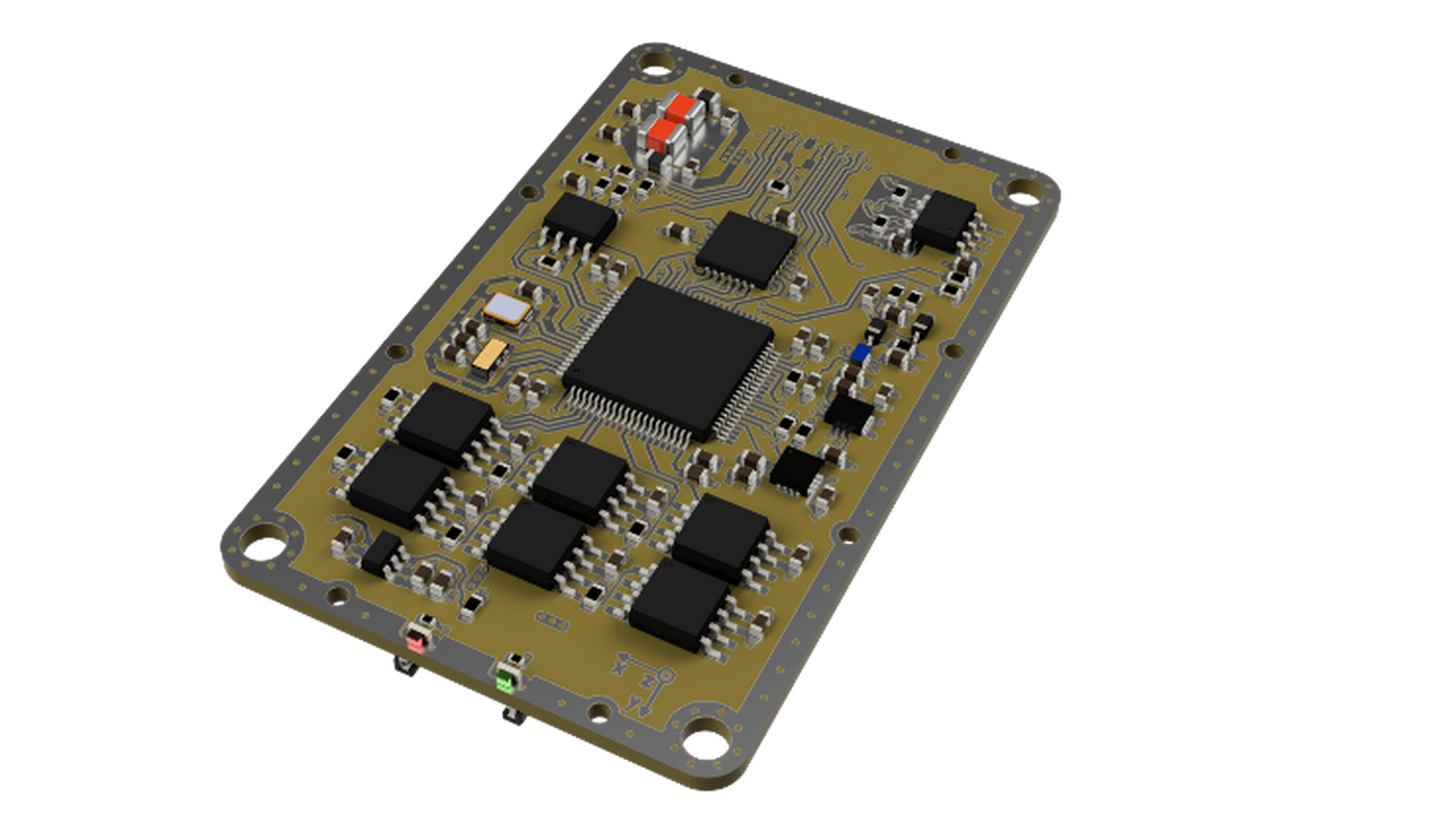

Spacemanic's Eddie - the On-board Computer - is a CubeSat OBC module suitable for nano-satellite C&DH, TT&C, mass storage, and ADCS. Eddie is made from components with extensive flight heritage on several space missions and complies with selected ECSS norms.
The system is compatible with a variety of commercial Real-Time Operating Systems and is provided running a FreeRTOS-based OS and a variety of software drivers. Eddie is a plug-and-play computer designed to enable communication with other components and sensors with just a few command lines of code.
Key Features:
- Robust, plug-and-play design
- High-reliability and radiation-tolerant data storage
- External on-board watchdog
- On-board gyro/acc/mag sensors
- On-board temperature sensors
- CubeSat Space Protocol / AX.25 / KISS
Properties
Overview
- Name
- Eddie Onboard Computer
- Supplier
- Spacemanic CZ
- Type
- Flight Computer / Onboard Computer (OBC)
- Flight proven
- Yes
Details
- Dry Mass
- 0.025 kg
- Power Consumption
- Off = 0 WNominal = 0.1 W
