Overview

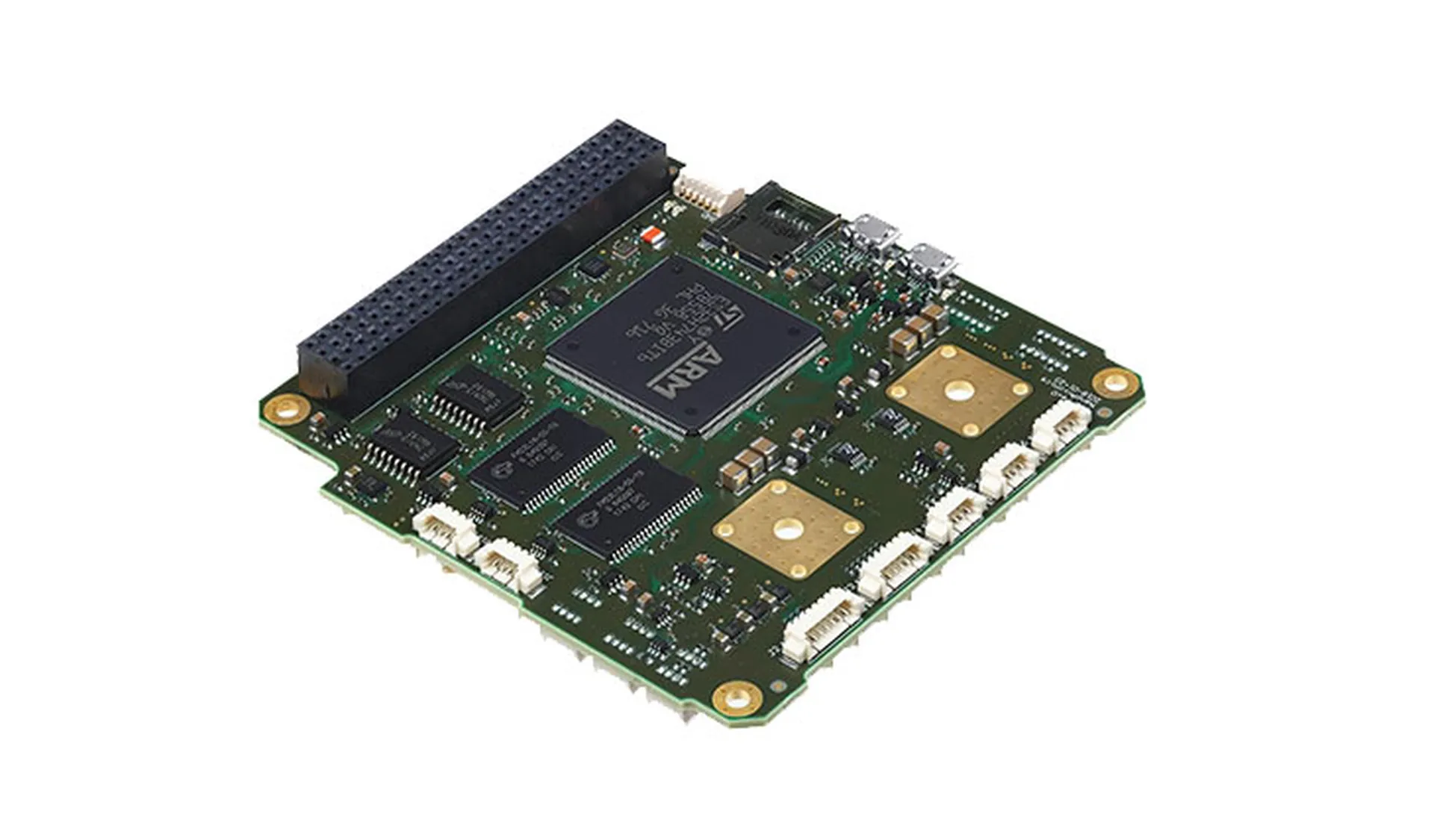

SatBus 3C2 is a flight computer tailored for small-sized satellites and complies with the CubeSat standard. The system is designed to save customers’ time and budget, minimize required integration effort and effectively increase volume for payload as well as overall system reliability through matched hardware on one board. SatBus 3C2 architecture is based on an STM32 H7 series microcontroller with high-performance and low power ARM Cortex™ M7 32-bit core MCU, operating at a frequency of up to 400 MHz. The same M7-core MCU performs OBC and ADCS functions. External flash and F-RAM memories provide reliable storage for telemetry and user data. A number of various digital interfaces are available for sensor and other CubeSat hardware support.

Properties

Overview

Name
SatBus 3C2
Supplier
NanoAvionics
Type
Flight Computer / Onboard Computer (OBC)
Flight proven
Yes
