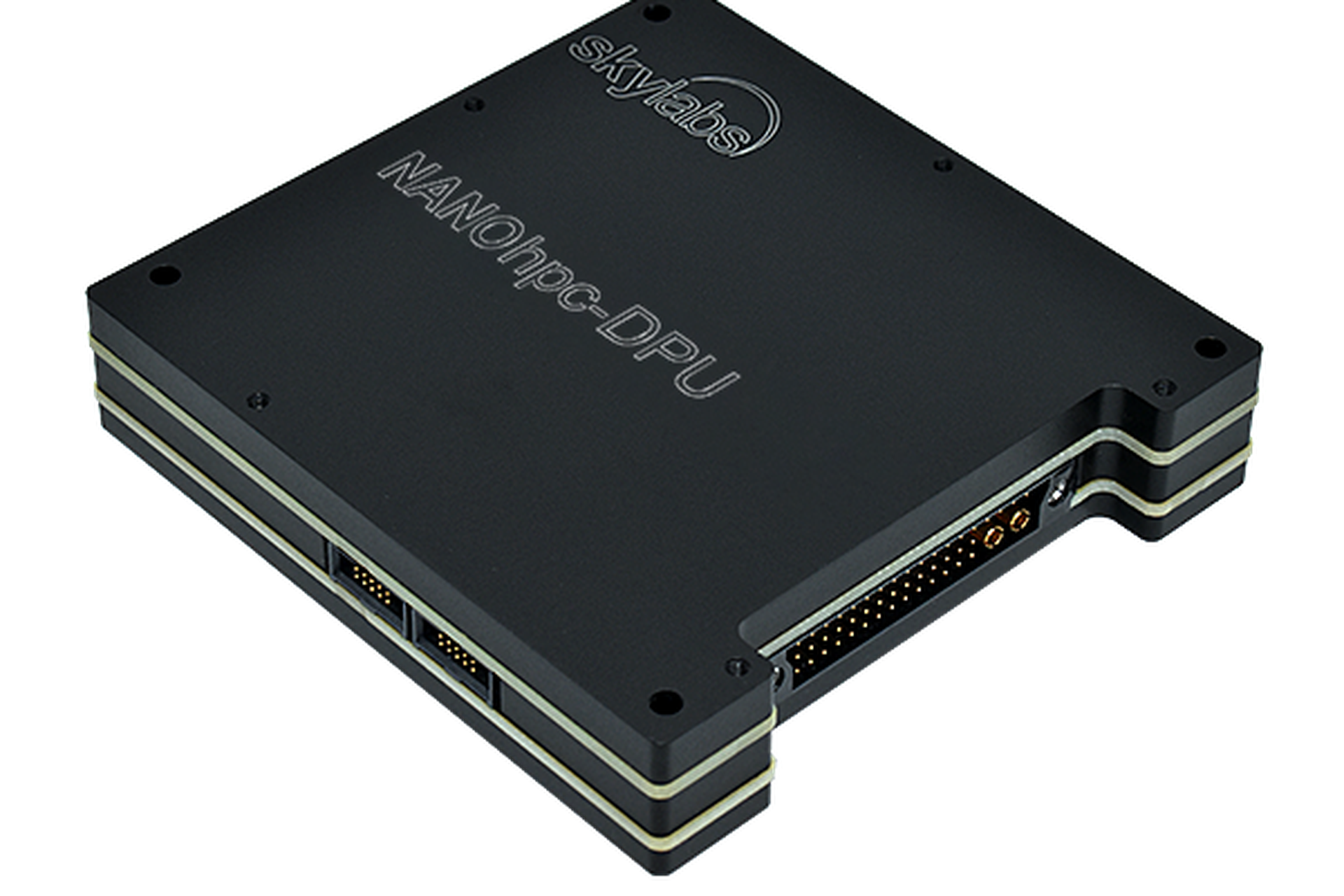

Part of the skyAI family of intelligent computing subsystems, the NANOhpc-DPU is a versatile and reconfigurable data processing subsystem composed of a base NANOhpc-obc unit connected via a high-speed PCIe interface to a DPU extension built around the AMD Zynq UltraScale+ MPSoC.

Both the NANOhpc-obc and the Zynq MPSoC are fully programmable, allowing the customer to implement custom on-board computing and data processing functions. The NANOhpc-obc provides supervision, housekeeping, and general control capabilities, while the Zynq MPSoC is dedicated to high-performance user-defined data processing algorithms. A configurable user connector allows direct access to Zynq MPSoC signals, enabling seamless interfacing with payloads or custom peripherals.

Base NANOhpc-obc

• Main CPU cluster4x RISC-V 64-bit processors @ max 600 MHz

• Supervisor RISC-V monitoring core@ max 600 MHz

• Main memory 4 GB DDR4

• Memory Management MMU with Physical memory protection

• Mass storage 92 GB NAND (EDAC protected)

• TM storage 256 kB MRAM with SECDED

• Interfaces:

  • Redundant CAN,

  • 4x LVDS/RS422/485/UART/16xGPIO,

  • 2x Gigabit ETH

• Software Linux (Yocto)

DPU extension board

• AI Technology AMD Zynq™ UltraScale+™ MPSoC ZU7EV

• FPGA Fabric 504K system Logic Cells

• Codec support H.264 / H.265

• Dedicated FPGA logic memory 32 Gb DDR4

• Application Processing Unit Quad-core Arm Cortex-A53 @ max 1.5 GHz

• Real-Time Processing Unit Dual-core Arm Cortex-R5F @ max 600 MHz

• Graphics Processing Unit Arm Mali-400 MP2 @ max 667 MHz

• Processing system memory 32 Gb DDR4
