Overview

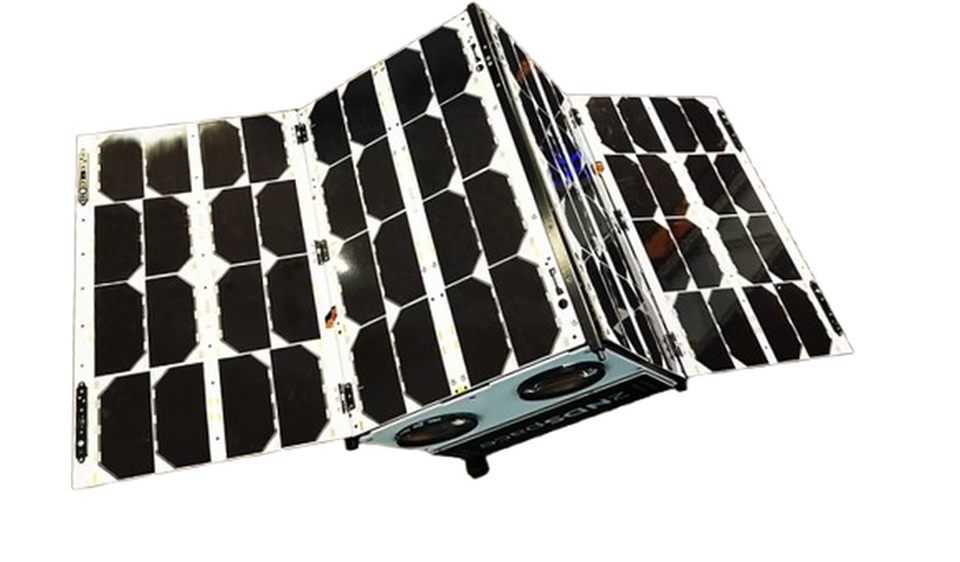

2NDSpace's DROP deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
6U/12U lateral panel (Compatible with 6U/12U Cubesat)
Max Power 40W - (20 V @ 2.0 A - 2x 20V @ 1.0 A)
Backstring option +20W (20V @0.5A)
Redundant HDRM
Customizable deployment angle 90° - 135°
Deployment swithces
Integrated Photodiodes and thermal sensors
Integrated HDRM control system
Improved thermal dissipation technology
Embedded magnetorquer option
RBF, Umbilical optional and IMU option
Properties
Overview
- Name
- DROP12X - 6U/12U Deployable Solar Panel
- Supplier
- 2NDSPACE
- Type
- Other
- Flight proven
- Yes
Delivery and customization
- Lead time
- 1 to 2 months
- Customization / NRE
Unknown
