Overview

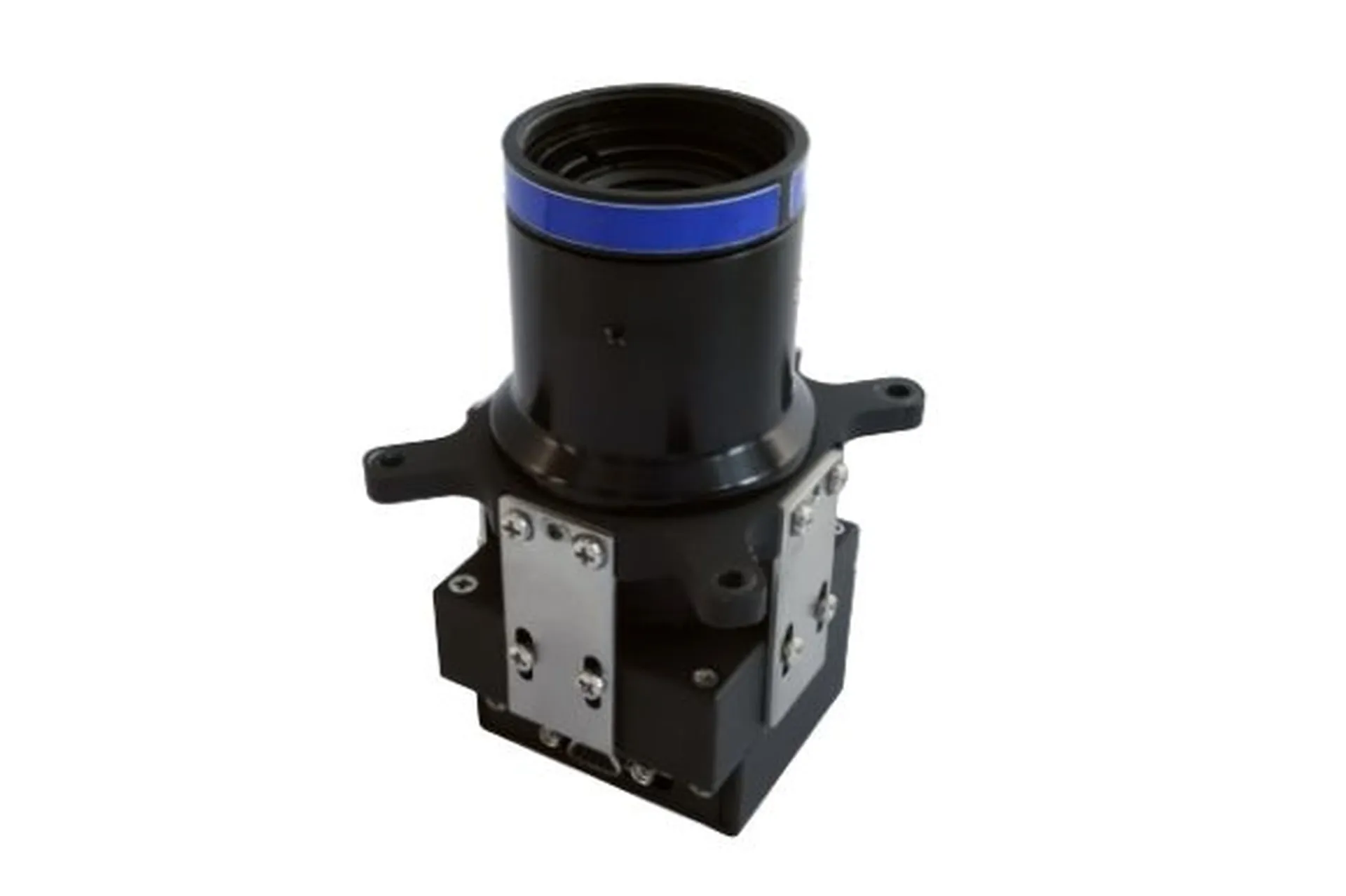

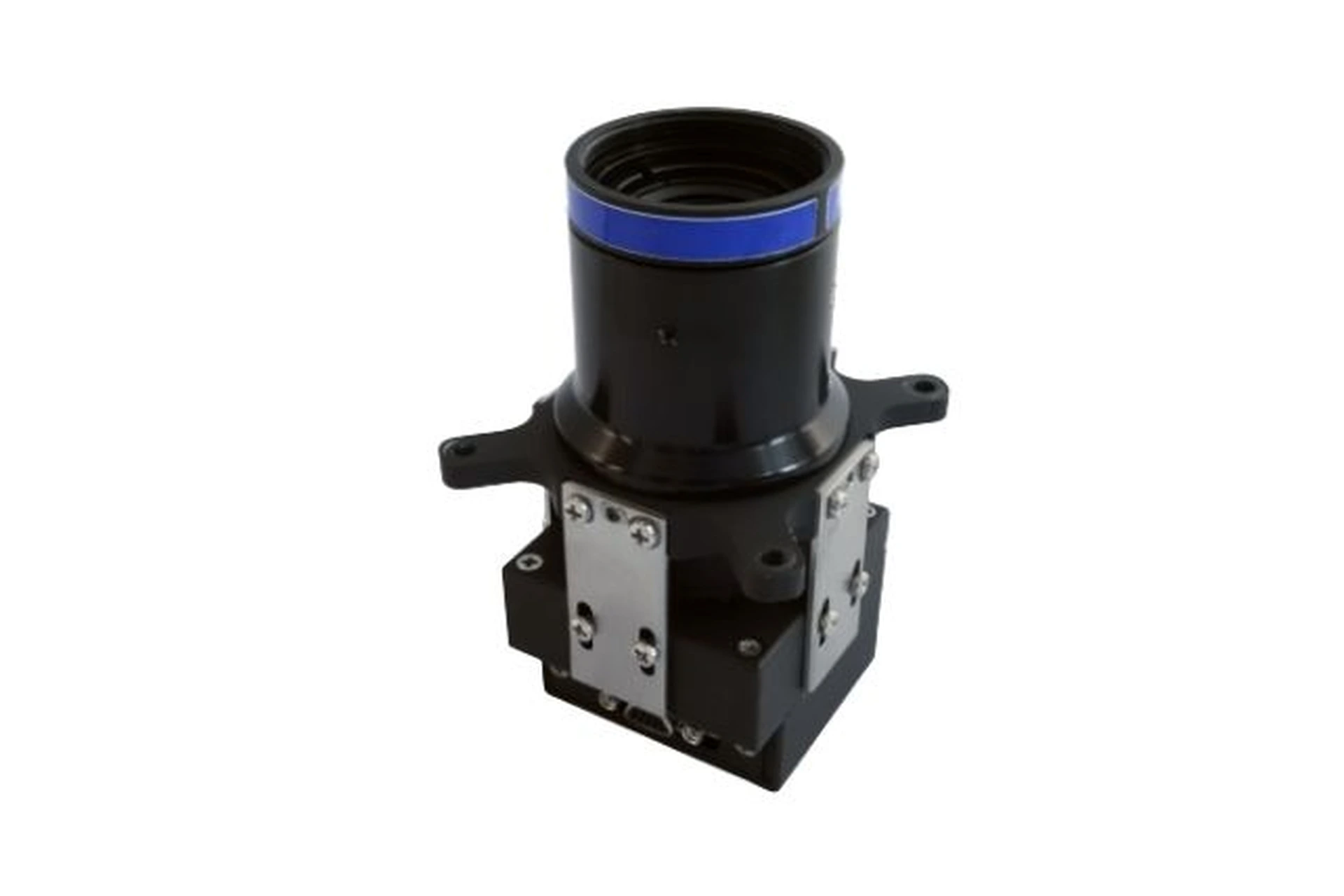

The ST400 is the bigger brother of the successful ST200 star tracker. It uses the same proven electronics but uses a different opto-mechanics. The ST400 trades an increased resolution for being a little larger than the miniature ST200. Like ST200, the ST400 has been developed in cooperation with Hyperion Technologies B.V. The ST400 delivers a full and autonomous attitude solution and is your attitude sensing solution for missions with demanding accuracy requirements. Characteristics: - Accuracy: 5 arcsec (RMS) - Tracking Update: 5 Hz - Limiting Magnitude: 6.0 - Data Interfaces: RS422 - Supply Voltage: 3.7-5.0V - Power Consumption: 670 mW @3.7 V - Operating Temperature: -20°C to +40°C - Dimension (w/o Baffle): 48 x 57 x 91 mm³ - Dimension (w/ 40° Baffle): 74 x 74 x 146 mm³ - Mass (w/o Baffle): 250 g - Mass (40° Baffle): 350 g - Design Life: 5 years LEO - Space Heritage: Yes - Radiation Test: 11 krad (Proton 130 MeV source)
Properties
Overview
- Name
- ST-400
- Supplier
- Berlin Space Technologies
- Type
- Other
- Flight proven
- Yes
