Overview

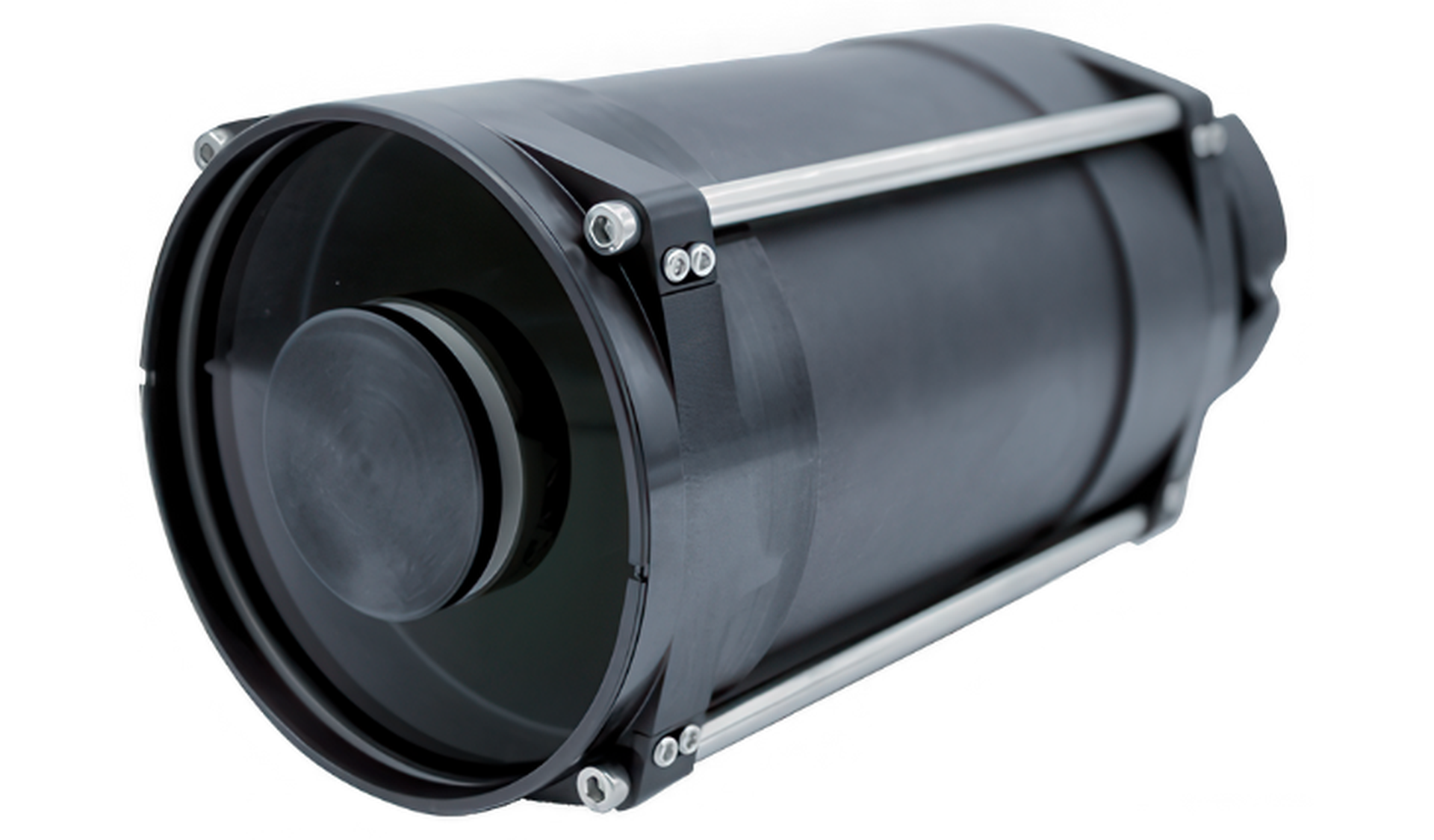

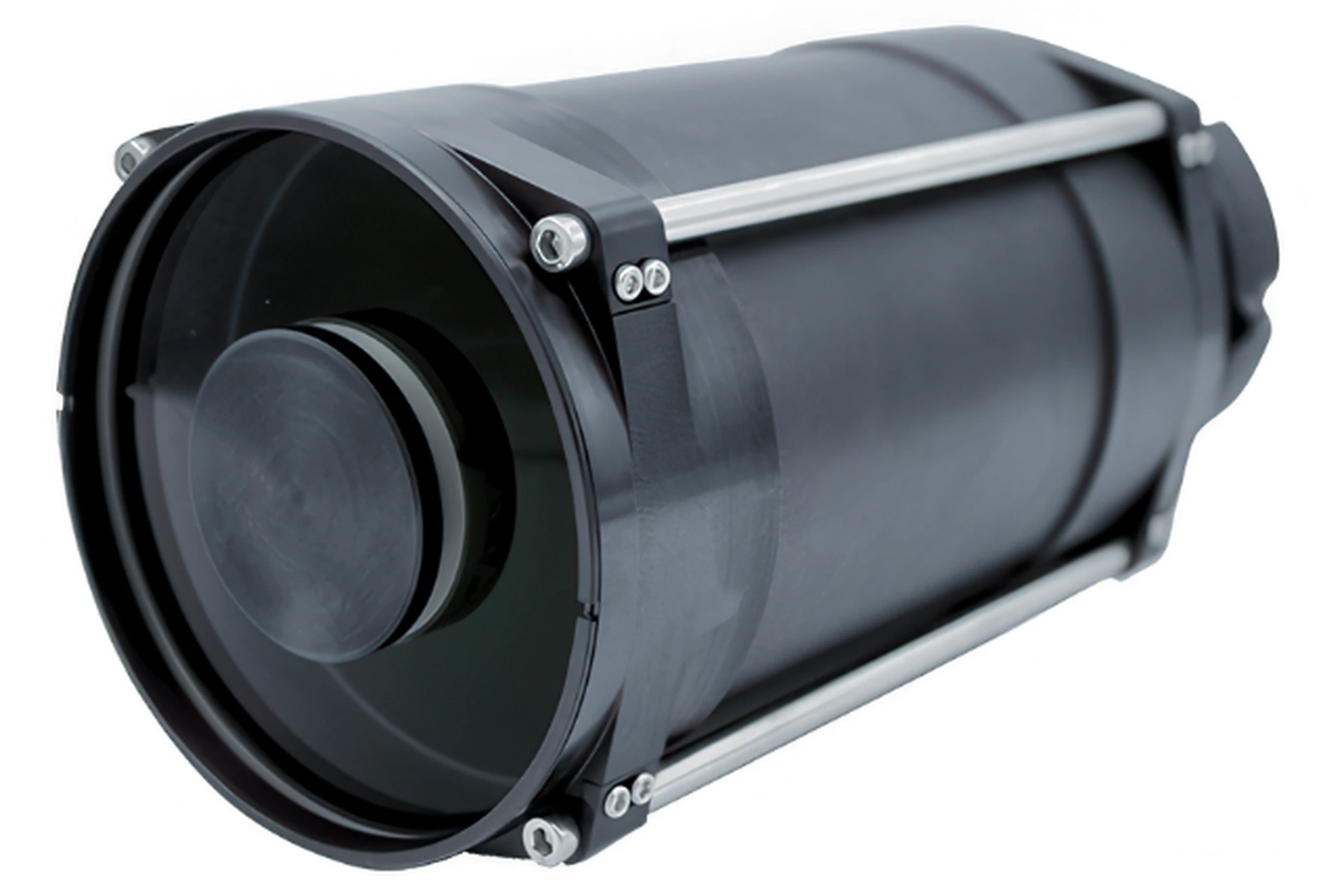

The Caiman, with flight heritage from 2023, is a high-resolution, multispectral imager that is optimised for integration with a 6U CubeSat. Large high-speed data storage is integrated into the compact design. The Caiman brings the highest resolution possible to this form factor.
Spatial Resolution (GSD) at 500 km
• RGB → 3.25 m
• Multispectral → PAN 3.25/ MS 6.5 m
Imager Type
• RGB → Snap shot
• Multispectral → Push broom
Spectral Bands
• RGB → Standard RGB
• Multispectral → 11x MS bands
Data Format
• RGB → 8-bit or 10-bit
• Multispectral → 10-bit or 12-bit
Properties
Overview
- Name
- Caiman Imager
- Supplier
- Dragonfly Aerospace
- Type
- Imaging Payload
- Flight proven
- Yes
