Overview

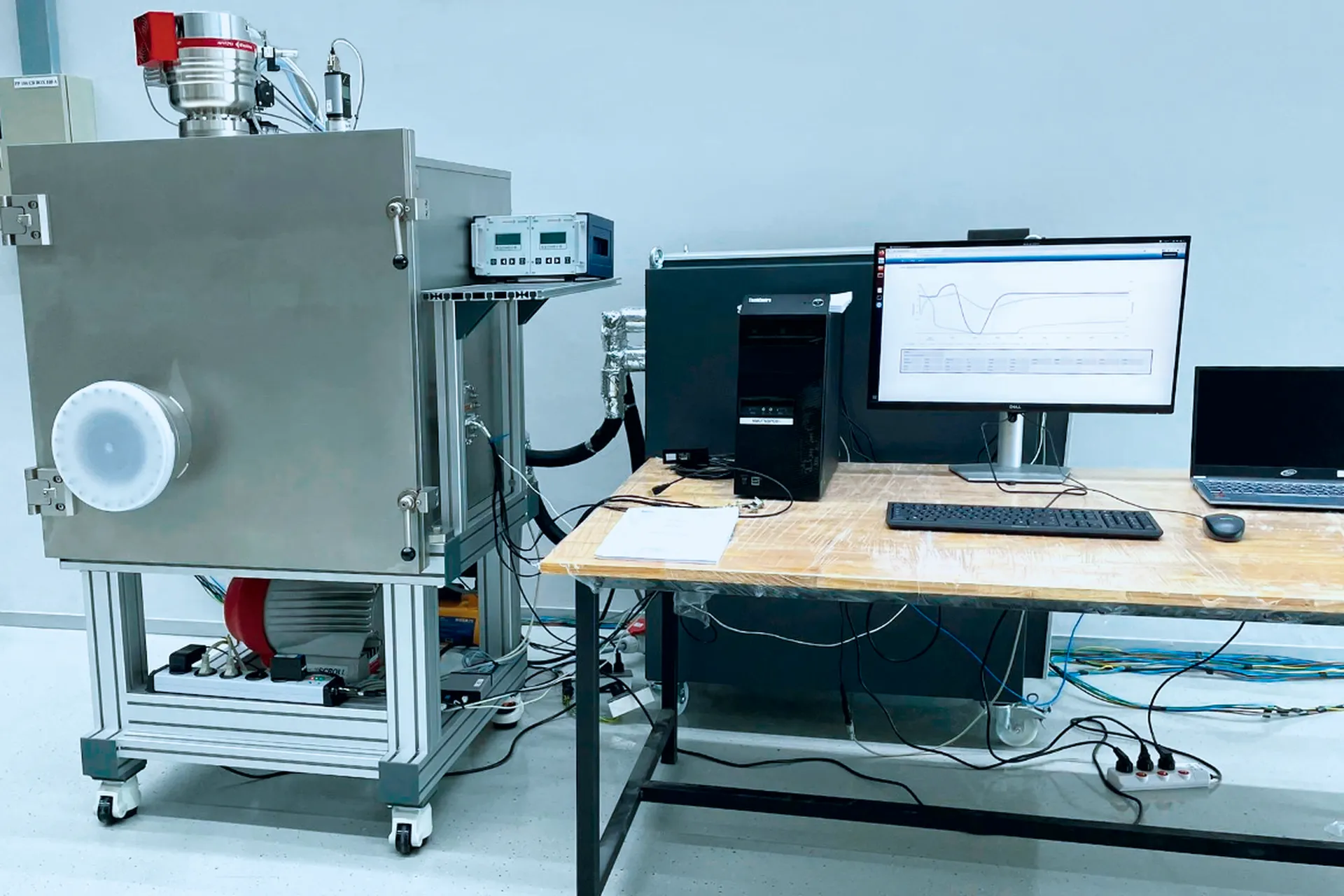

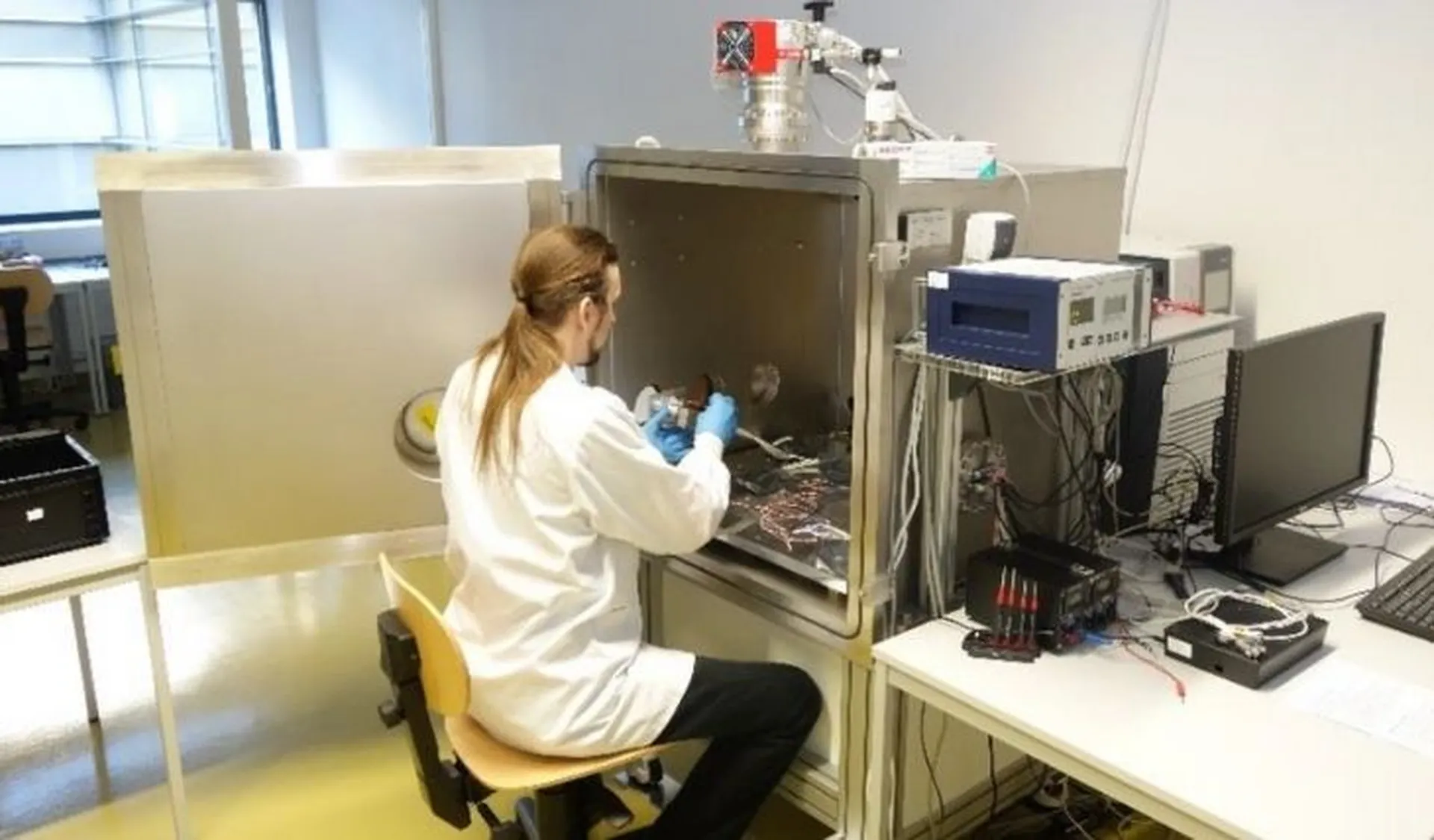

Berlin Space Technologies offers cost effective solutions for thermal vacuum tests (TVAC). Our TVAC chambers are built to your specification and tailor-made to the complex test regime of the space industry. They offer automatic safety and logging modes which allow the operator to run the chamber without human supervision.

Characteristics

  • Useful volume: 800x800x800mm

  • Vacuum Level: 10e-6mbar

  • Thermal System: -80°C to +150°C (cryocooler)

  • Thermal Shroud: active (cryocooler)

  • Ports:

    • Viewports

    • Electrical Feed Through

    • RF Feed Through (optional)

  • Automatic monitoring system:

    • Thermal monitoring

    • Safety monitoring for remote operation

    • Data logging for remote operation

Properties

Overview

Name
Thermal Vacuum Chamber
Supplier
Berlin Space Technologies
Type
Environmental Test System
Flight proven
No
