Overview

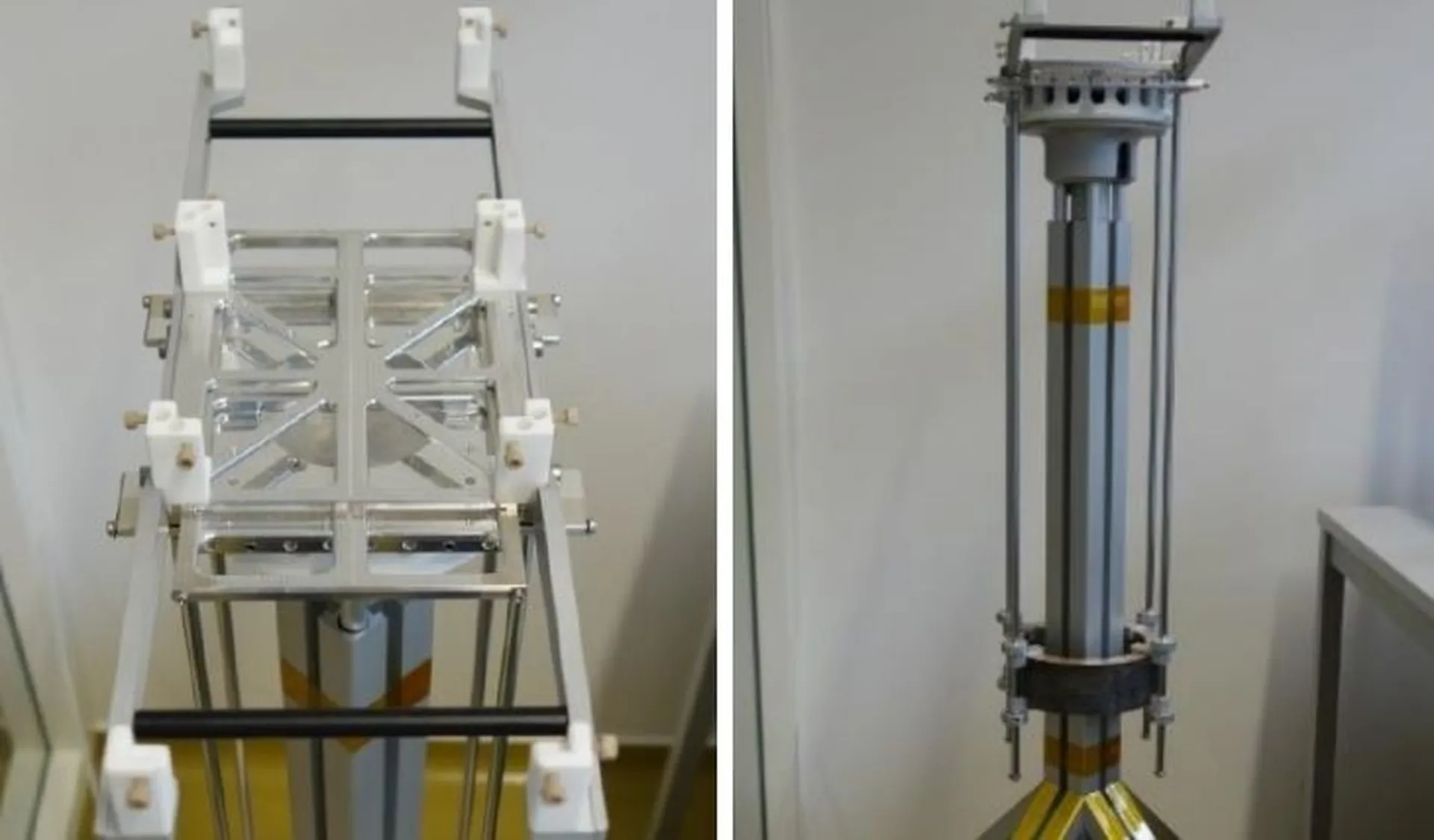

The NanoSat Air Bearing developed by Berlin Space Technologies is a test platform dedicated to test the attitude control system of nanosatellites. The NanoSat Air Bearing is suitable for 1-3U CubeSats. Its modular design allows integration of additional test equipment like Helmholtz coils and a sun simulator.
CHARACTERISTICS:
Load Capacity:
- 1U to 3U
- Larger version on request
Features:
- 3-Axis Air Bearing
- Mechanical balancing
- Lower/lift the floating unit to and from the air
- Safety against tilting
Optional Items:
- Automatic balancing
- Automatic lift mechanism
- Under pressure warning and automatic lifting
- Magnetic field simulator
- Sun simulator
- GPS simulator
- Star simulator
Properties
Overview
- Name
- Nano Satellite Air Bearing 2nd Gen
- Supplier
- Berlin Space Technologies
- Type
- Other
- Flight proven
- No
