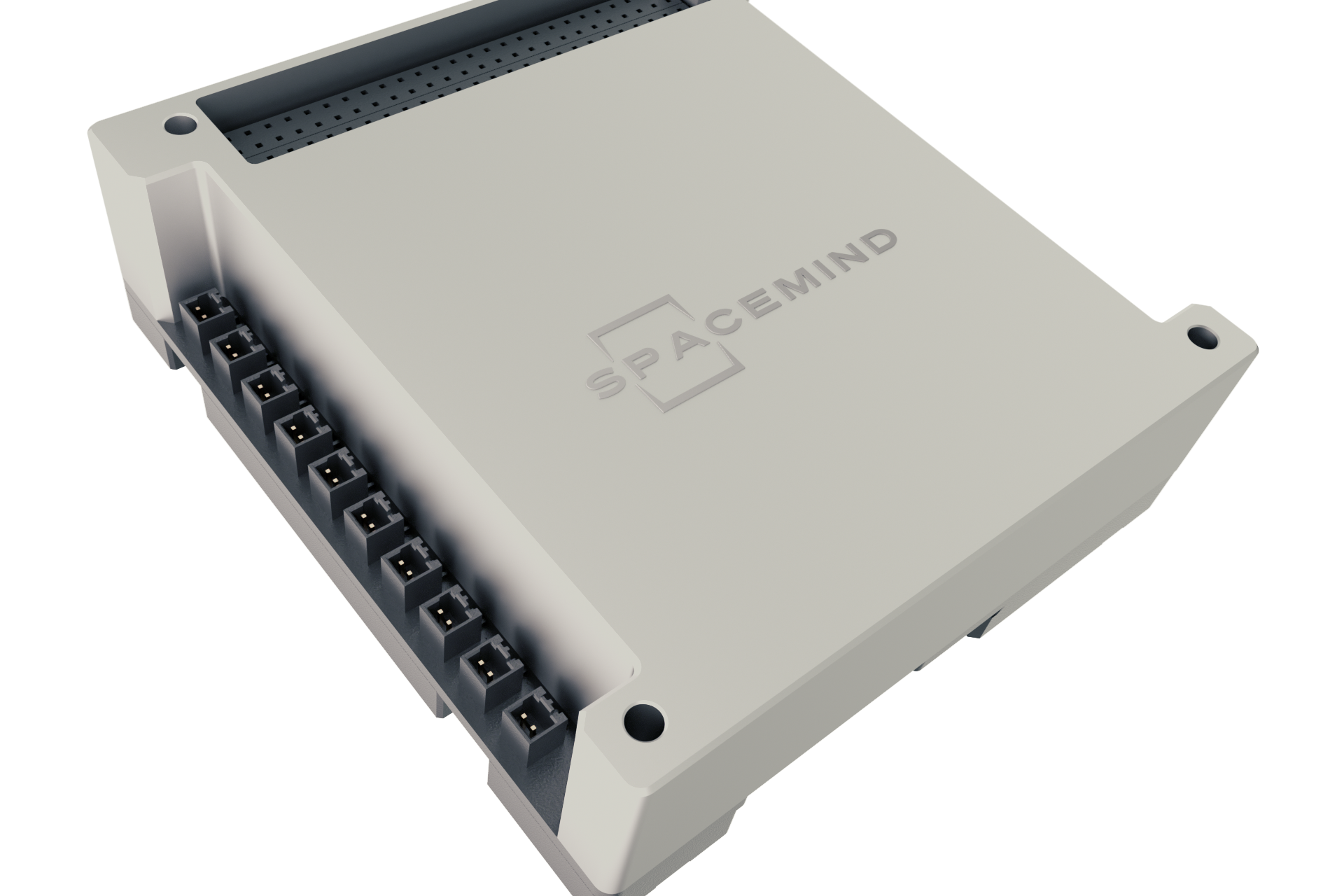

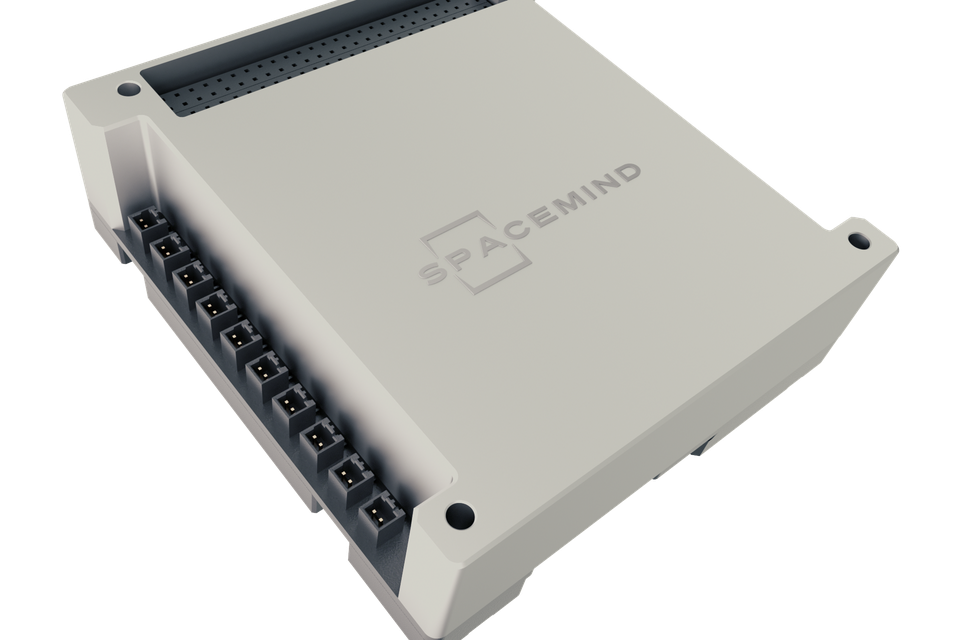

GEMINI is SPACEMIND’s Electrical Power System designed for CubeSats missions. It features an integrated battery pack module with a wide range of fully customizable input and output channels.

SPACEMIND’s EPS has industry-leading performance and is fully compliant with the CubeSat standard.

Key features:

• Modular EPS for 3U - 16U Cubesat platforms​

• 6 Input channel - voltage per channel 5 to 20V​

• Up to 8 parallel battery packs​

• Battery pack capacity per unit: 84 Wh for 8 cells​

• Programmable Output Bus 3.3V-5V-6/12V-24V​

• Full protection (OV, OC, OP); Configurable interfaces

Properties:

• EPS Mass: 300 g

• Volume: 90.20 x 95.90 x 25 mm
