Overview

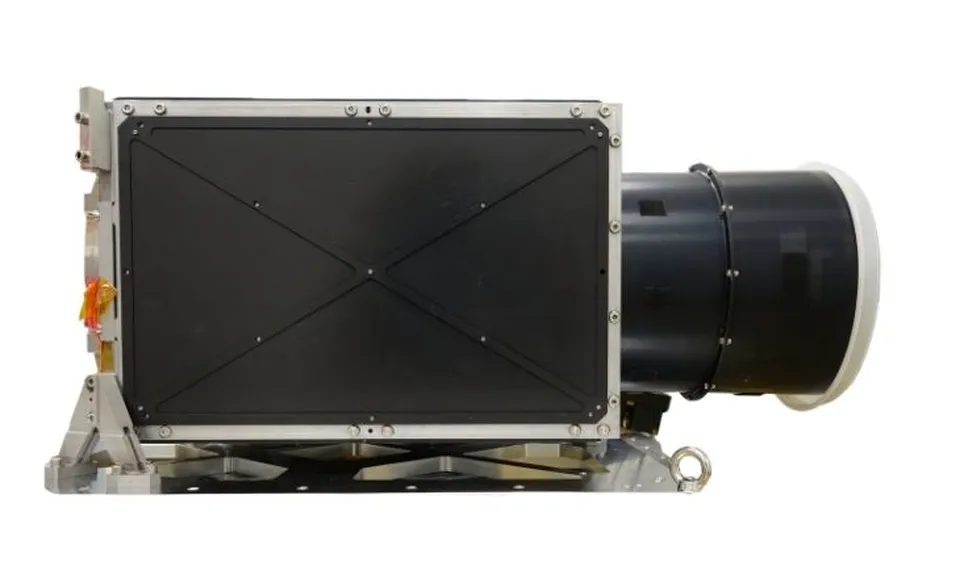

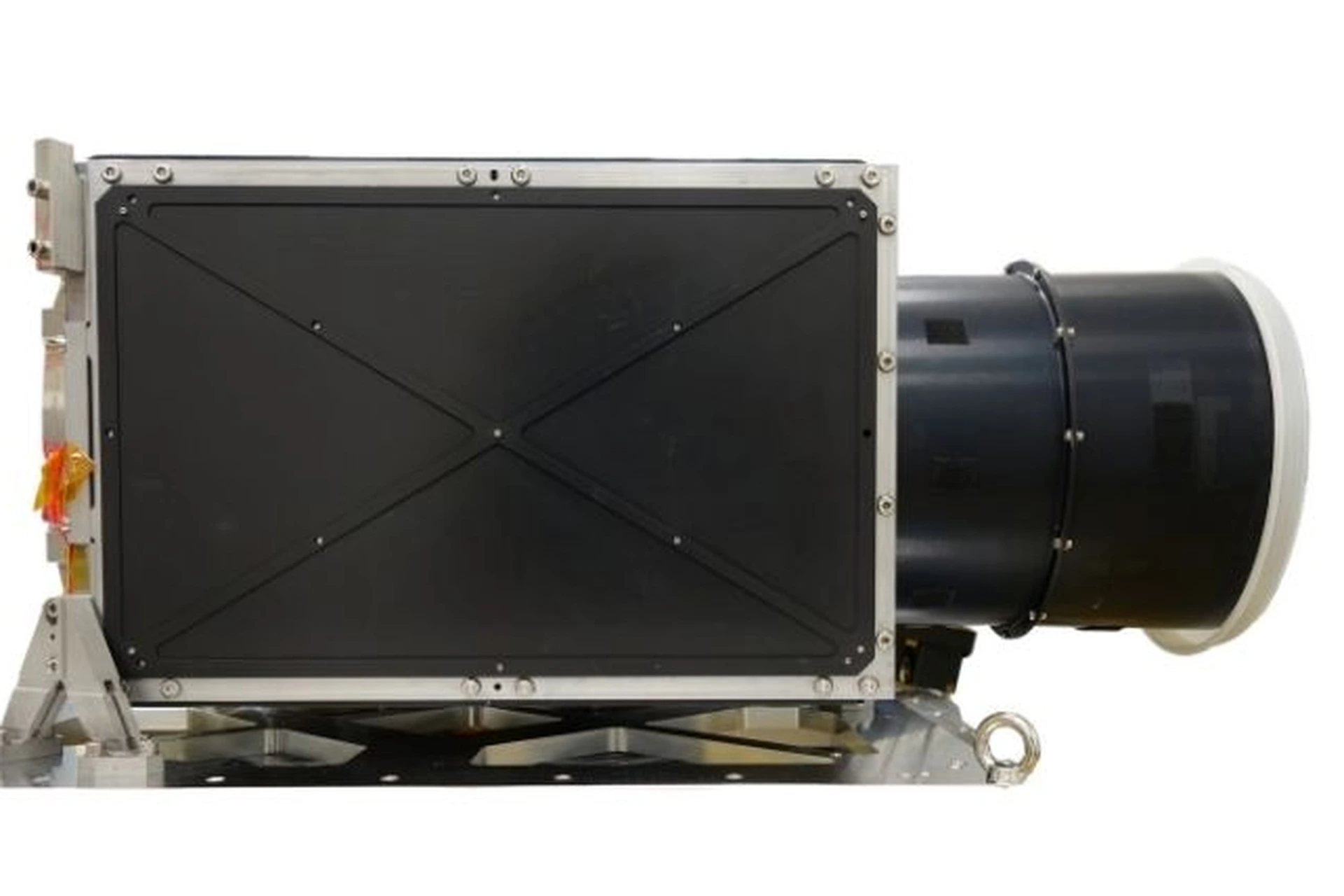

The HRVI-2HD is the latest version of BST high-resolution camera systems. The HRVI-2HD is built around a sophisticated Three Mirror Anastigmat (TMA) and offers 1.92m GSD resolution imagery with a 14.6 km swath. The HRVI-2HD consists of the TMA Telescope and the Sensor and Focus Assembly (SFA) and the Payload Data Processing Unit (PLSU).
Characteristics:
Resolution: (PAN / MS) 1.92m / 7.68m @ 500 km - Swath: 14.6 km @ 500 km
Channels: 1 PAN +4 MS
DPU: JPEG, 1 TB storage, CCSDS, Encryption
On Orbit Focusing: Yes
Size: 540 x 320 x 170 mm³
Mass: 19 kg
Design Life: 5 years
Properties
Overview
- Name
- HRVI-2HD
- Supplier
- Berlin Space Technologies
- Type
- Imaging Payload
- Flight proven
- Yes
Details
- Dry Mass
- 19
