Overview

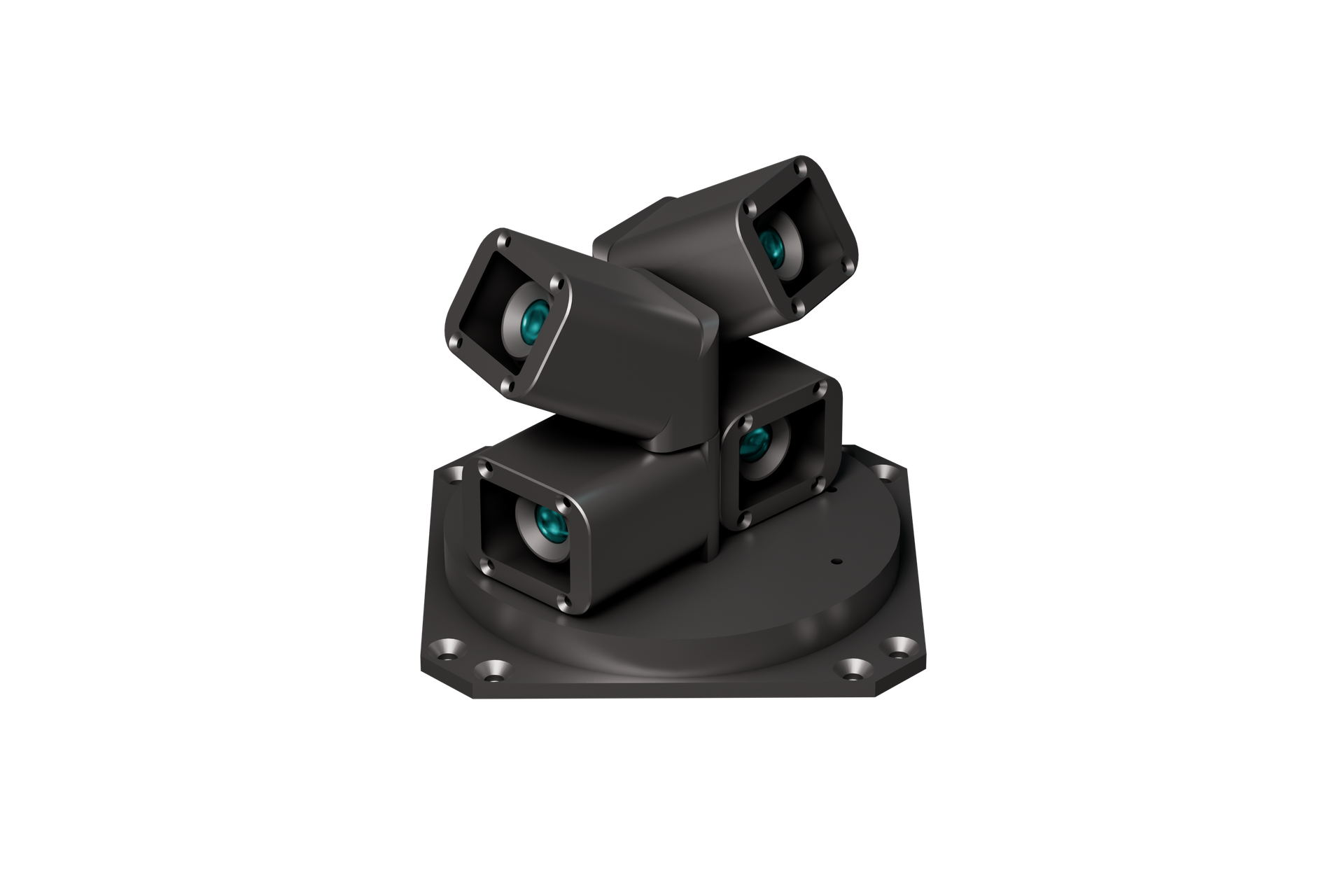

The Multi-Head Star Sensor is a unique solution that can integrate up to six sensor heads to significantly increase data availability during large attitude maneuvers. The number and orientation of the heads can be fully customized to mission requirements. Thanks to their ultra-compact design, the sensor heads can easily be integrated into a CubeSat’s tuna can, making them ideal for space-constrained platforms.

Properties

Overview

Name
Multi-Head Star Sensor
Supplier
PYXIS SPACE
Type
Star Tracker
Flight proven
Yes

Details

Accuracy (cross boresight)
36 "
Accuracy (boresight)
180 "
Data Rate
2 Hz
Slew Rate
up to 1.5 °/s
Sun / Earth Exclusion Angle
80° / 70° for each sensor head
Interface
2 x CAN2.0B, redundant configutation
Power supply
+4 V to +5.5 V
Dry Mass
< 240
Dimensions
tuna can, D79mm x L67mm

Pricing

Cost
€20,000 to €35,000 EUR

Delivery and customization

Lead time
2 months
Customization / NRE

Unknown
