Overview

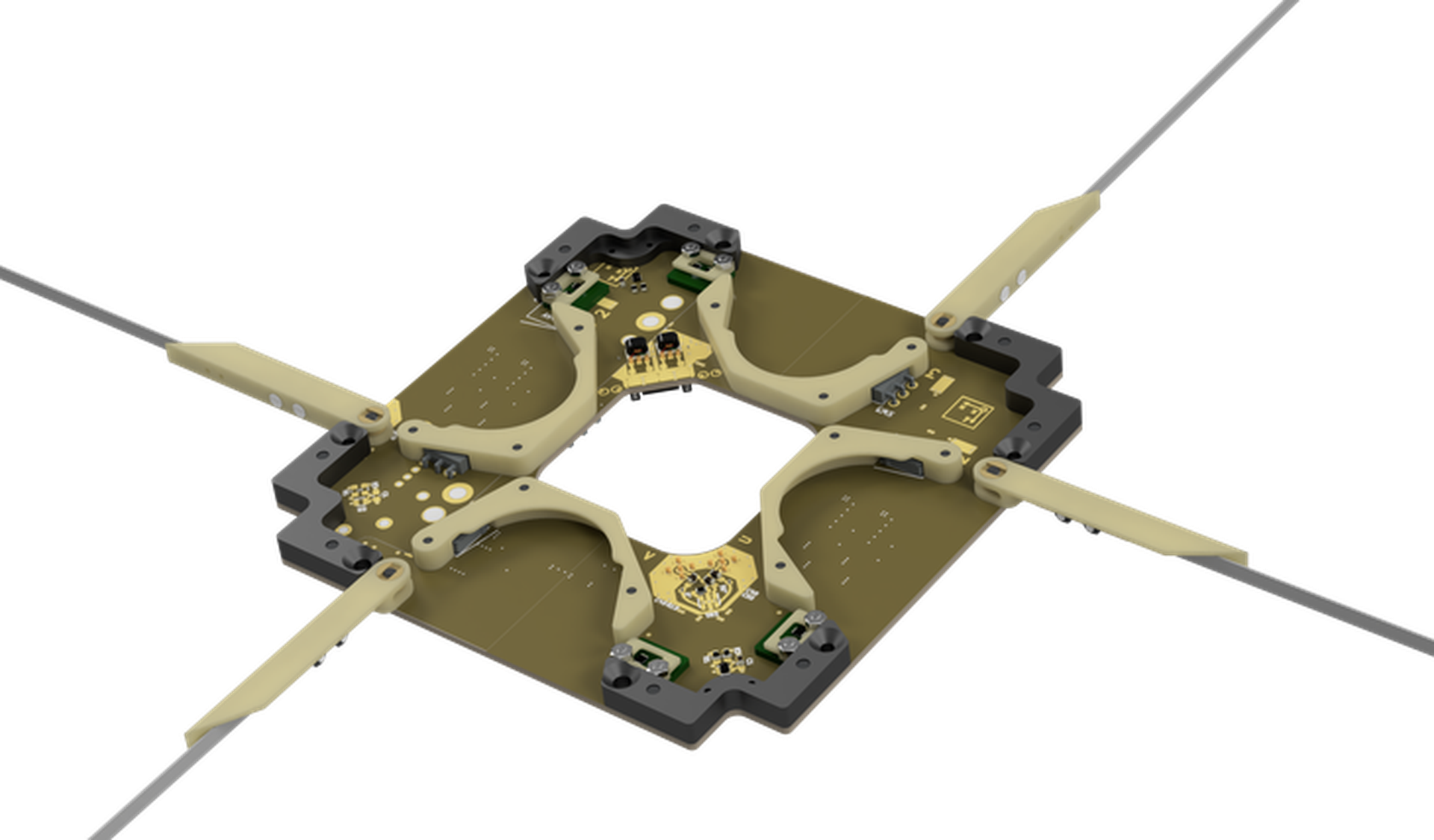

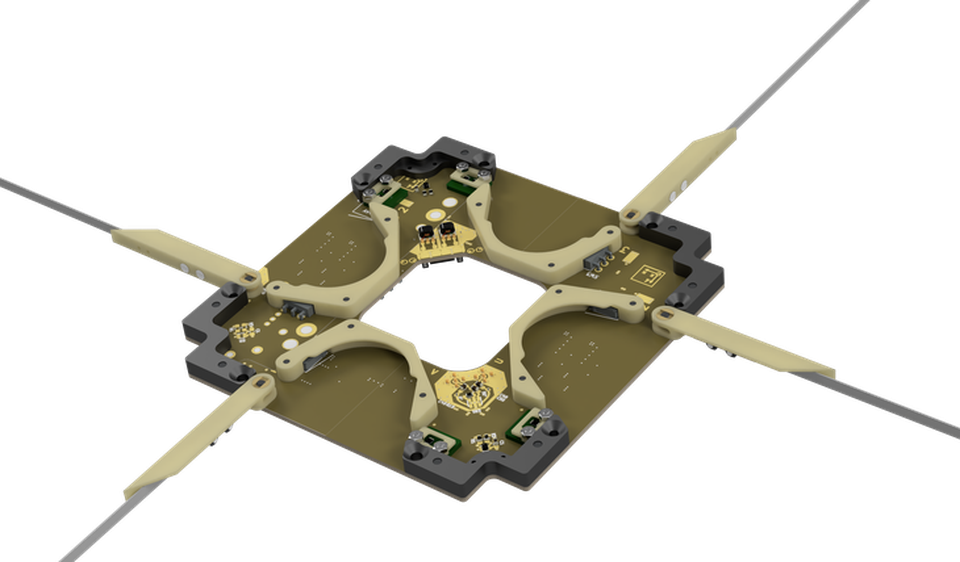

The SAM (Small Antenna Module) UHF/VHF antenna is ideal for many use cases, such as telemetry, tracking and command, RF, and SDR usage. It accompanies standard Spacemanic features such as I2C and RS485 interfaces, a switch for deployment confirmation, debug LEDs, and more. The antenna subsystem is suitable for 1U-3U nanosatellites and can be scaled up for larger platforms up to 16U.
Properties
Overview
- Name
- SAM - Small Antenna Module UHF/VHF
- Supplier
- Spacemanic CZ
- Type
- Wire Antenna
- Flight proven
- Yes
Details
- Dry Mass
- 0.055 kg
- Power Consumption
- Off = 0 WDeployment = 1.5 WCommunication Mode = 0.075 W
Delivery and customization
- Lead time
- 3 to 12 months
- Customization / NRE
Unknown
