Qu-Dyn-09 image 1 1 / 4

Overview

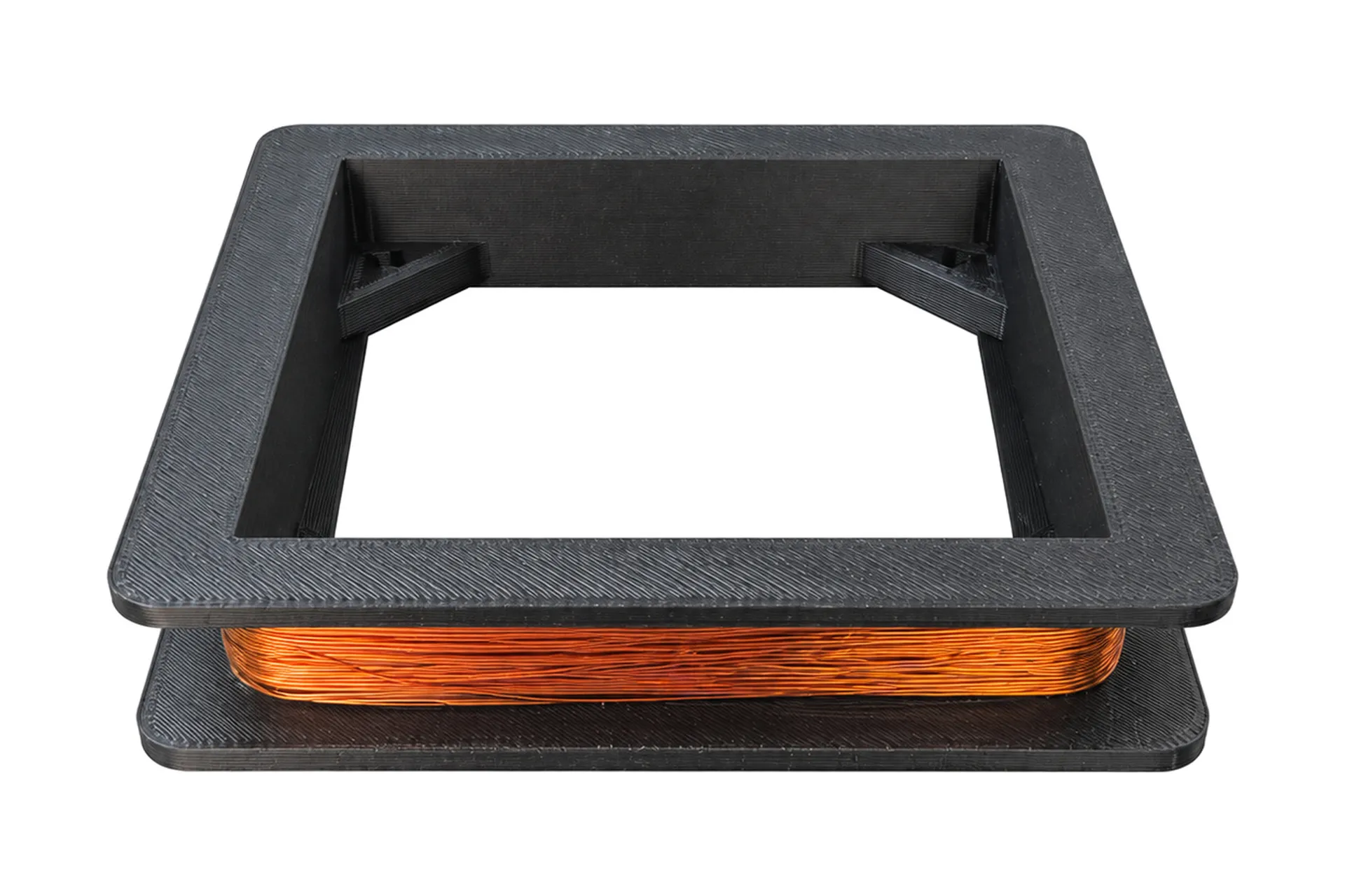

A compact air-core magnetorquer designed for precise magnetic attitude control of small satellites. The unit provides a 0.9 A·m² magnetic dipole moment and features a lightweight, robust PEEK housing for demanding spacecraft applications. With a compact form factor of 55 × 55 × 14 mm, the magnetorquer is designed for efficient integration into space-constrained satellite platforms.

Specifications

Parameter Value
Overview
Name Qu-Dyn-09
Company Minerva Dynamics
Category Magnetorquer
Flight proven No
TRL —
Mechanical
Dry Mass 0.09kg
Envelope Shape Cuboid
Length 55mm
Width 55mm
Height 14mm
Electrical
Input Voltage (Nominal) 5V
Power Consumption (Typical) 2.5W
Dipole Linear Voltage Range 0–5V
DC Resistance 10Ω
Performance
Magnetic Dipole Moment (Nominal) 0.9A m²
Magnetic Gain 1.8A m²/A
Pricing and procurement
Cost From $1,075
Lead time Up to 1month
Customization / NRE

We can manufacture in different geometries and power consumptions for your needs

Yes

Files

Datasheet PDF · 6 KB · Nov 11, 2026
Need a document that is not listed here? Request it from the supplier
