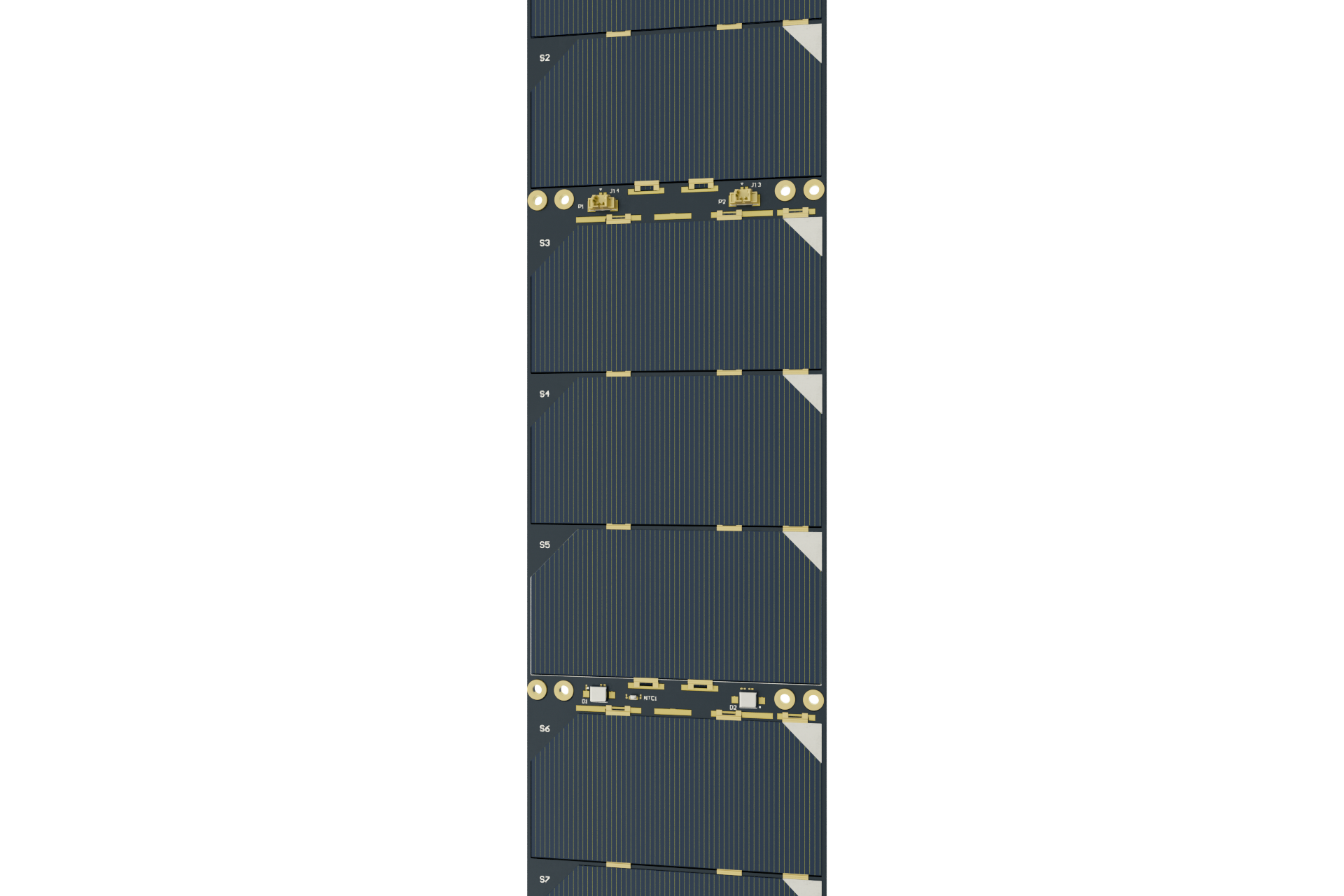

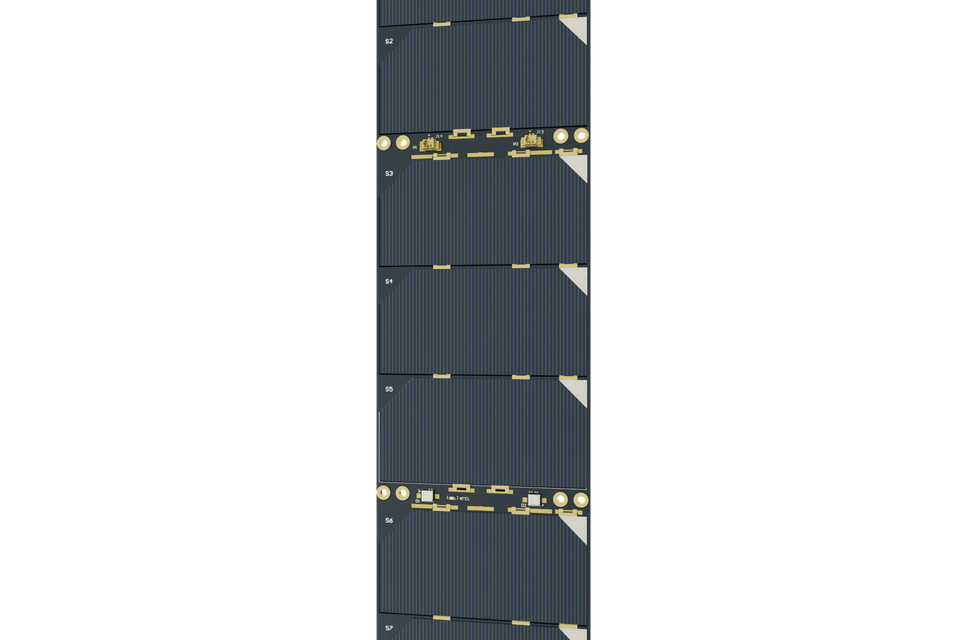

SPM-SP is a modular and flexible family of solar panels by NPC Spacemind, designed for full compatibility with SM CubeSat structures and both commercial and custom-made CubeSat components.

Optional features include thermal sensors, sun sensors, an inertial module, and a magnetic sensor. Custom shapes and electrical configurations are available to meet specific mission requirements.

Key Features:

• Solar panel for XY side

• Compatible with 3U/6U CubeSat structures

• High efficiency triple junction UTJ solar cells

• Mass: 110 g

• Peak Power: 8-8.8 W

• Current Max Power: 500-520 mA

• Voltage Max Power: 16-17.5 V

• Open Circuit Voltage: 18.2-19.3 V

• 2 parallel picoblade power connectors

Options and Customization:

• Digital temperature sensor

• NTC

• 2 Coarse Sun sensors

• IMU

• Magnetic sensor

• RBF

Refined through extensive in-orbit experience and customer-driven feedback, the latest generation of SPACEMIND solar panels offers greater flexibility and enhanced compatibility. For the first time, users can choose the communication protocol of digital sensors, selecting between SPI and I²C, ensuring improved adaptability compared to previous versions.
