Overview

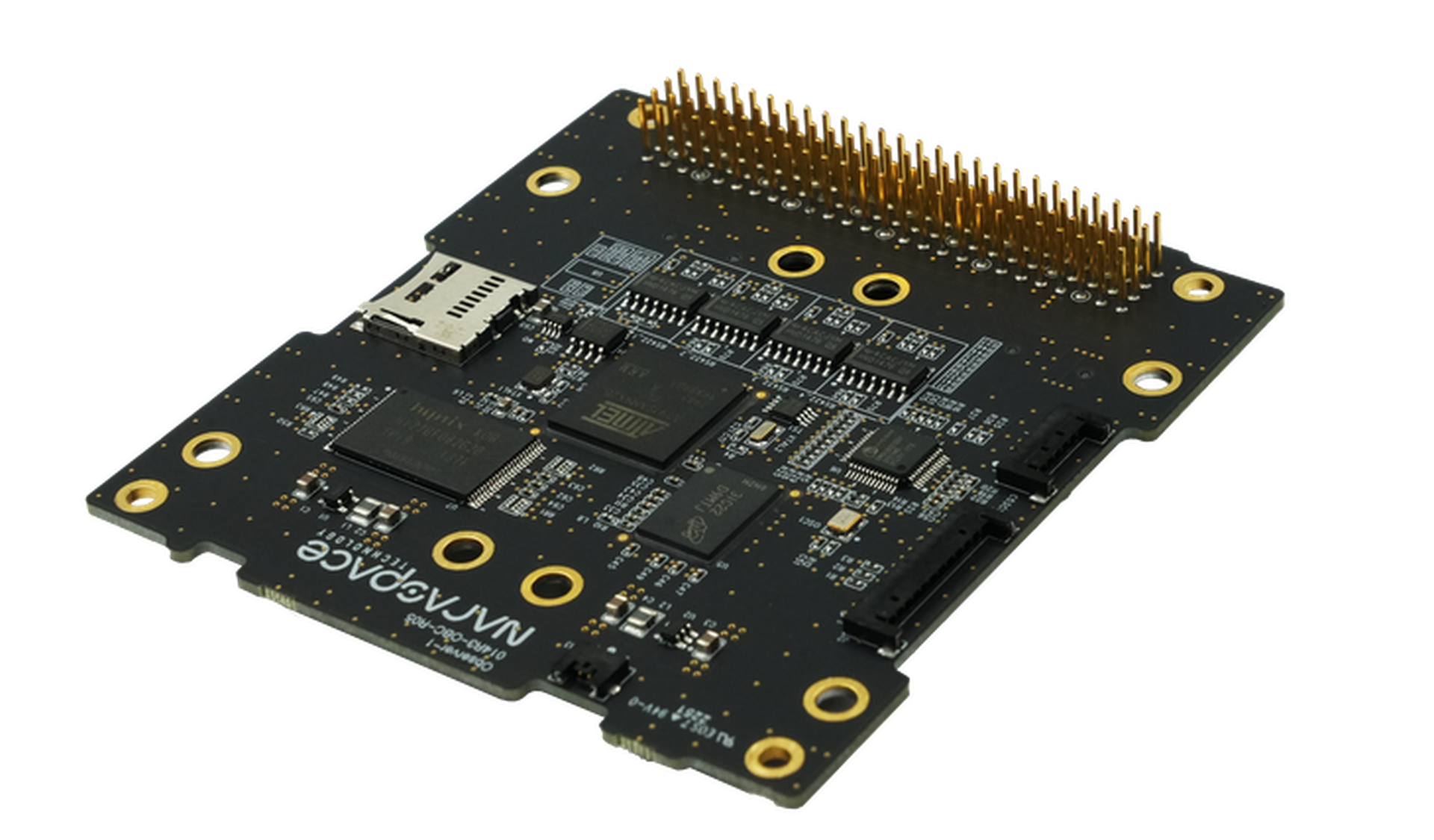

NARA SPACE's NST OBC is an Atmel ARM based On-Board Computer (OBC) for CubeSats. The NST OBC has a 32 GB MicroSD slot available for high data driven mission architectures. I/F: CAN, RS-422, RS-485, SPI, TWI, UART, DUART, GPIS, ADC, PPS, EMAC The NST OBC has flight heritage (TRL9) since 2022. - PVSAT (180 kg) @APSI, 2022 - MIMAN (3U) @Yonsei University, 2022 - Observer-1A (16U) @Nara Space, 2023
Properties
Overview
- Name
- NST OBC
- Supplier
- Nara Space
- Type
- Flight Computer / Onboard Computer (OBC)
- Flight proven
- Yes
- Flight proven mission(s)
- PVSAT (180 kg) @APSI, 2022, MIMAN (3U) @Yonsei University, 2022, Observer-1A (16U) @Nara Space, 2023
Details
- Dry Mass
- 0.0605 kg
- Power Consumption
- Off = 0 WNominal = 0.6 WPeak = 1 W
Pricing
- Cost
- $6,000 to $10,000 USD
- Fiscal Year
- 2015
Delivery and customization
- Lead time
- 3 to 12 months
- Customization / NRE
Unknown
