Overview

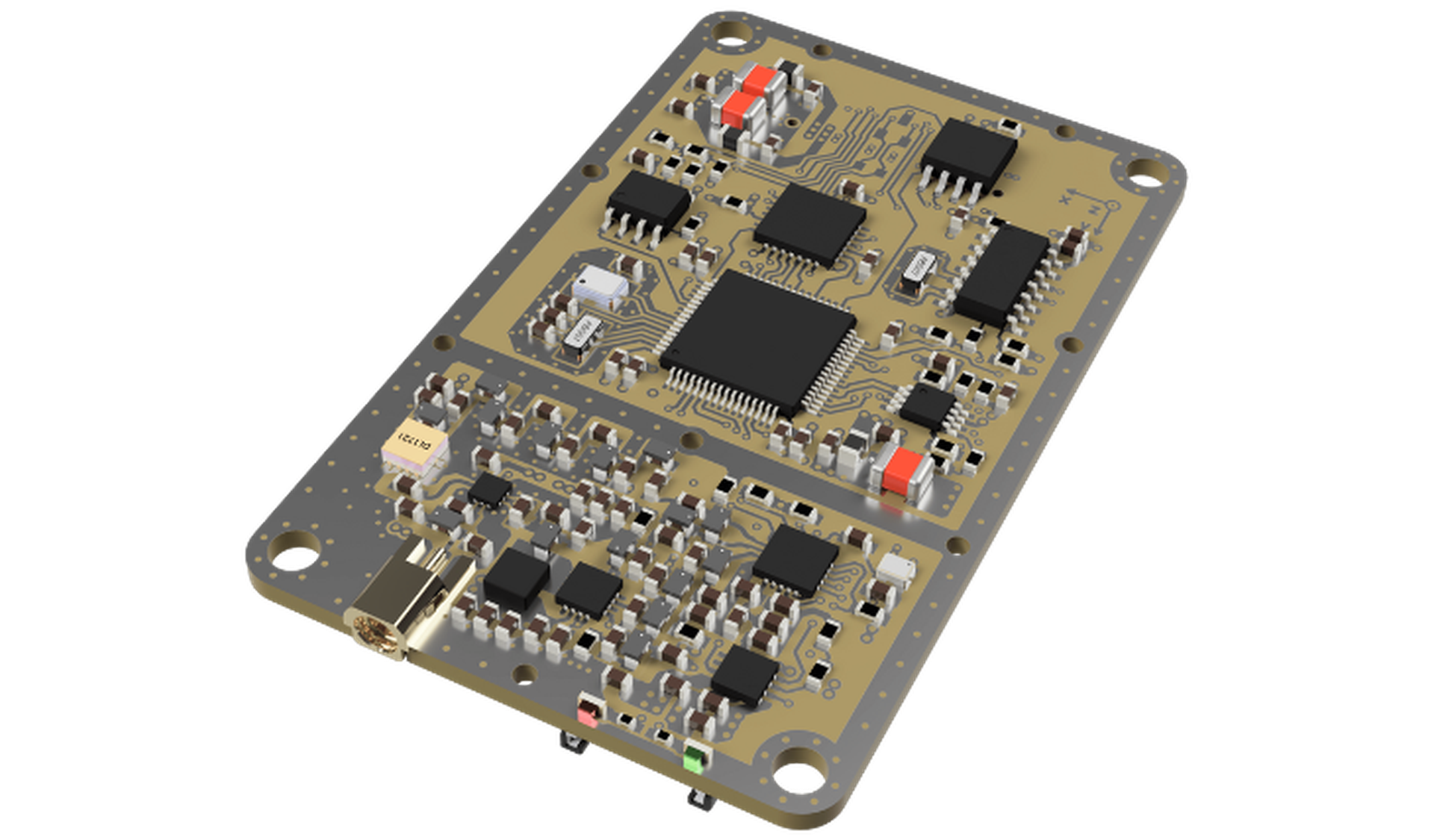

Spacemanic's Murgas - the UHF/VHF Transceiver is a space-grade, software-configurable UHF/VHF transceiver for long-range satellite communication. The robust device enables transmitting and receiving of signals at the same time without interference. It has a half-duplex, narrow-band operation, and RF parameters that are fully configurable in orbit. Two modules for full duplex are also provided and HAM services (beacon, CW, digipeater) are included. Key Features: - Programmable RF carrier frequency and FSK deviation - Supports KISS, CSP, and AX25 - Integrated heat sink (also works as EMI shield) - Full and half duplex operations - Two modules for full redundancy - Compatible with components from other vendors - GFSK/GMSK, CW modulation - Compatible with Spacemanic cubesat standard - Engineering model and simulator available
Properties
Overview
- Name
- Murgas - UHF/VHF Transceiver
- Supplier
- Spacemanic CZ
- Type
- Transceiver
- Flight proven
- Yes
Details
- Dry Mass
- 0.025 kg
