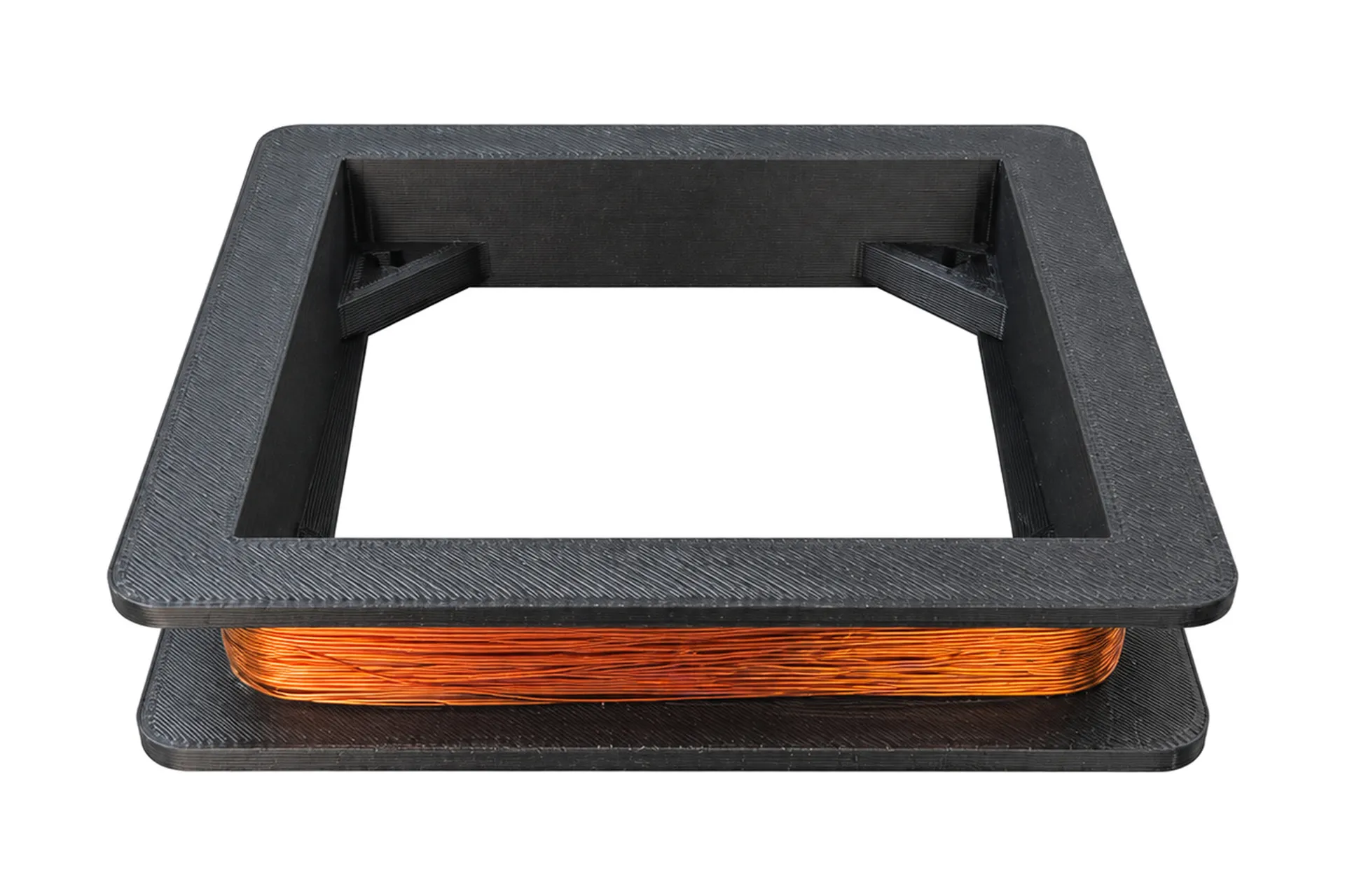

A compact air-core magnetorquer designed for precise magnetic attitude control of small satellites. The unit provides a 1 A·m² magnetic dipole moment and features a lightweight, robust PEEK housing for demanding spacecraft applications. With a compact form factor of 35 × 30 × 14 mm, the magnetorquer is designed for efficient integration into space-constrained satellite platforms.
Overview
Specifications
| Parameter | Value | |
|---|---|---|
| Overview | ||
| Name | Qu-Dyn-10 | |
| Company | Minerva Dynamics | |
| Category | Magnetorquer | |
| Flight proven | No | |
| TRL | — | |
| Mechanical | ||
| Dry Mass | 0.102kg | |
| Envelope Shape | Cuboid | |
| Length | 35mm | |
| Width | 30mm | |
| Height | 14mm | |
| Electrical | ||
| Input Voltage (Nominal) | 5V | |
| Power Consumption (Typical) | 1.71W | |
| Dipole Linear Voltage Range | 0–5V | |
| DC Resistance | 14.6Ω | |
| Performance | ||
| Magnetic Dipole Moment (Nominal) | 1A m² | |
| Magnetic Gain | 2.93A m²/A | |
| Pricing and procurement | ||
| Cost | From $1,121 | |
| Lead time | Up to 1month | |
| Customization / NRE We can manufacture in different geometries and power consumptions for your needs | Yes | |
