Overview

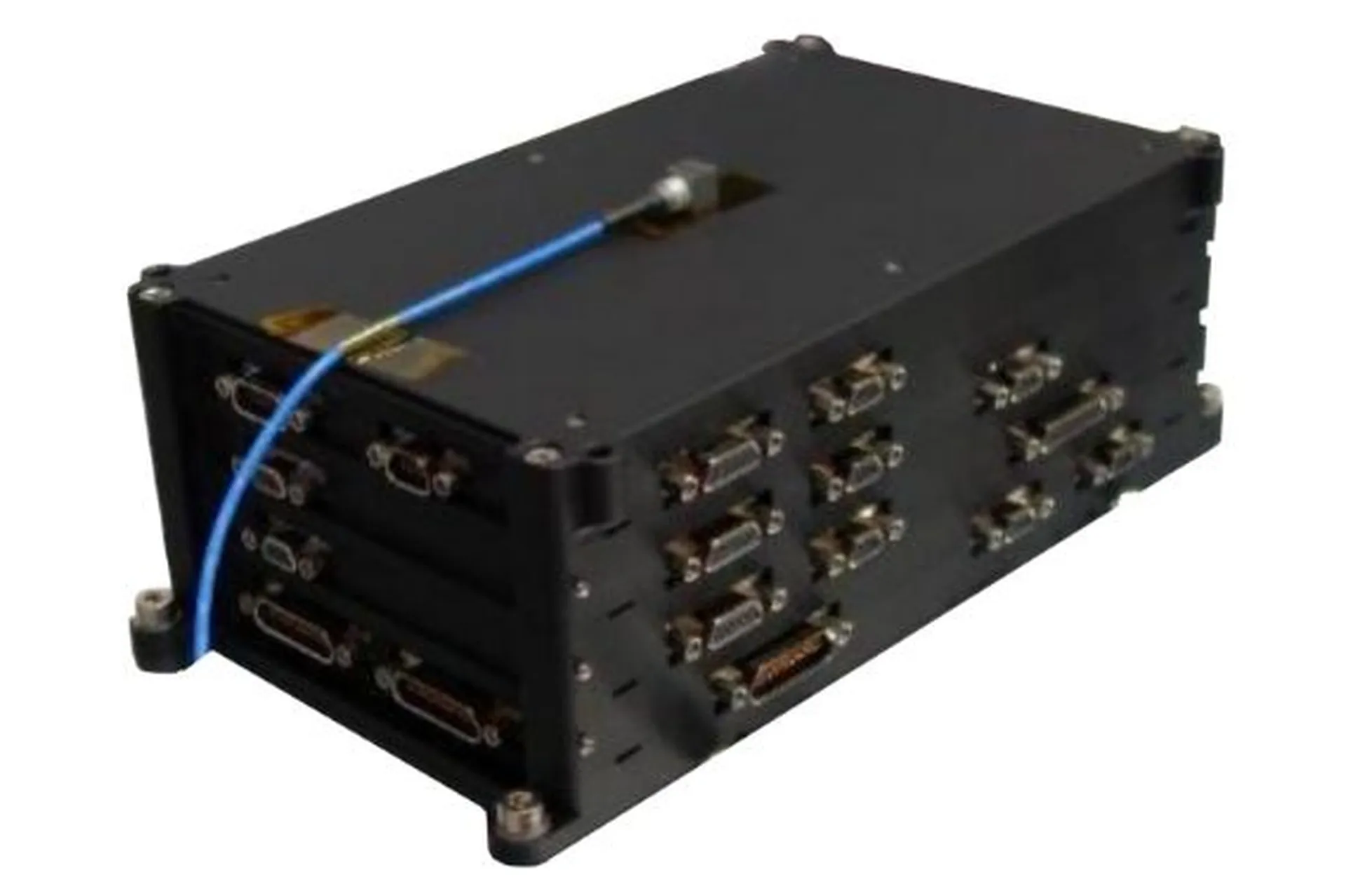

The PCU-110 by Berlin Space Technologies is the second generation of our flight proven Power Control and Distribution Units. It takes the space proven electronics of the predecessor and places it a package roughly half the size. It is able to handle power regulation, power switching, DC/DC conversion and safety features of a small satellite. It is highly adaptable for different missions and sub systems. Specifications: - Dimensions: 186 x 105 x 61 mm³ - Mass: 1.08 kg (depending on configuration) - TM/TC Interface: RS422 - Solar Panel Interface: 12x 20-25V (Customizable) - Battery Interface: 6x 23.1V (Customizable) - Regulated Power: 12V, 5V, 3.3V (Customizable) - Radiation Test: 30 krad (Co60) - Design Life: 5 years LEO
Properties
Overview
- Name
- PCU-110
- Supplier
- Berlin Space Technologies
- Type
- Other
- Flight proven
- Yes
