Overview

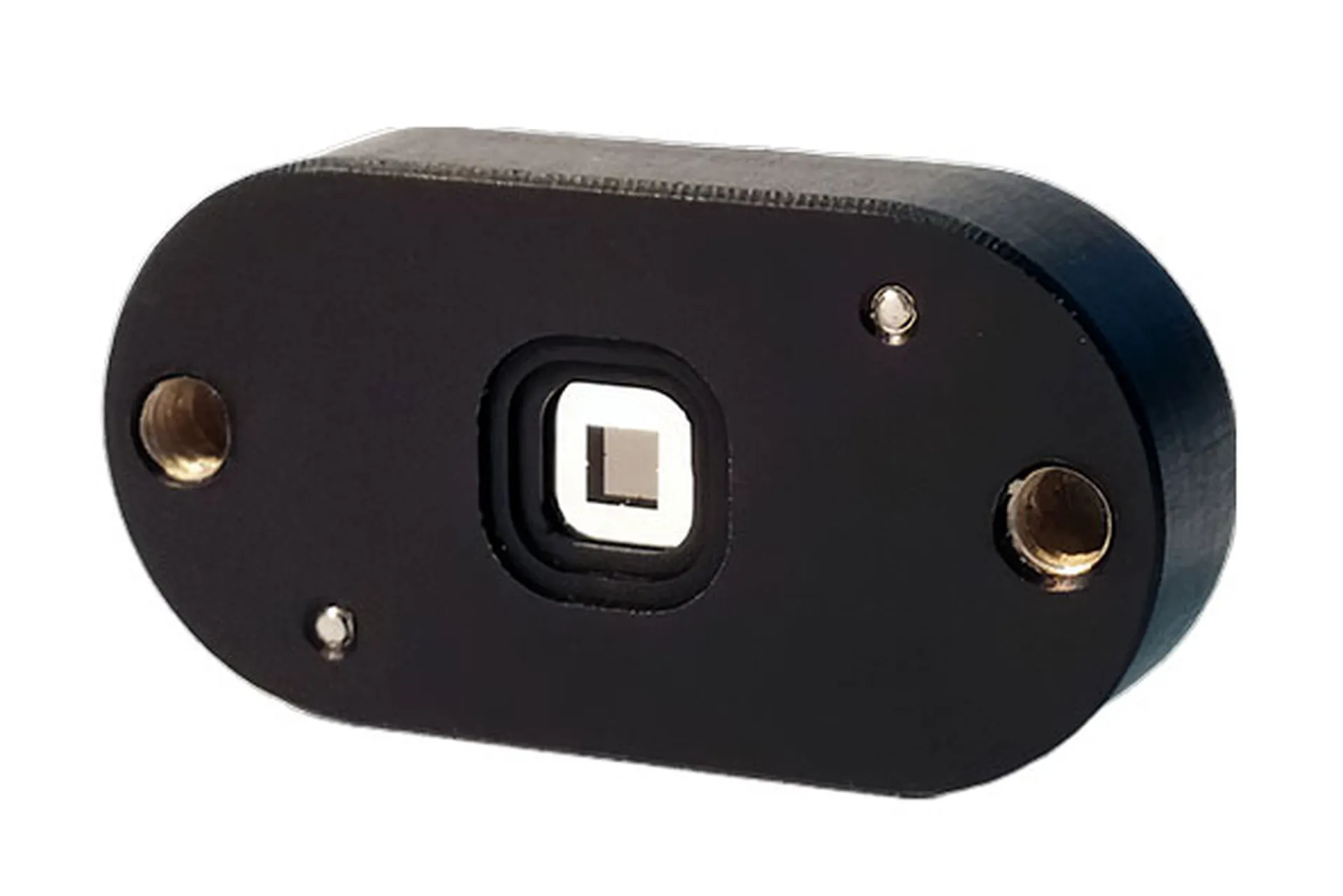

The Solar MEMS Sun Sensor on a Chip (SSOC) solution is a two-axes and low cost sun sensor for highly accurate sun-tracking, pointing and attitude determination. The device measures the incident angle of sun ray in two orthogonal axes, providing a high sensitivity based on the geometrical dimensions of the design. The nanoSSOC-A60 sun sensor is based on MEMS fabrication processes to achieve highly integrated sensing structures. The nanoSSOC-A60 has analog interface and is compact, low weight and low power, making it ideally suited to nanosatellite platforms. The nanoSSOC-A60 sun sensor includes MEMS technology with flight heritage and electronic components that are space-grade. There are hundreds of units in orbit since 2016. Key features of the nanoSSOC-A60 sun sensor include: - ITAR free - Analog space qualified - Compatible with most nanosatellite structures - Compatible with most OBCs
Properties
Overview
- Name
- NanoSSOC-A60
- Supplier
- Solar MEMS Technologies
- Type
- Sun Sensor
- Flight proven
- Yes
