Overview

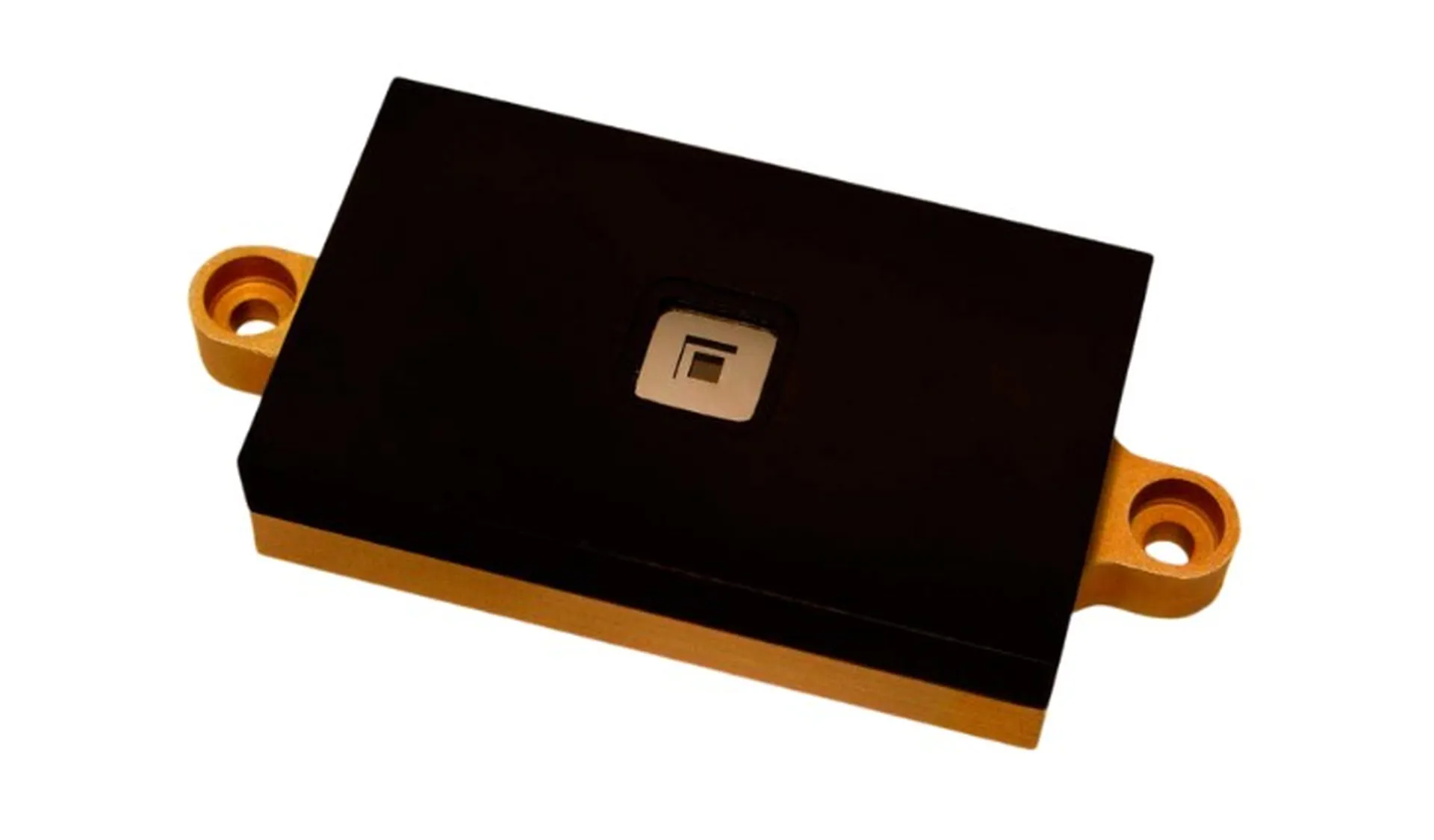

The Solar MEMS Sun Sensor on a Chip (SSOC) solution is based on MEMS fabrication processes to achieve highly integrated sensing structures for high accurate sun-tracking, positioning systems and attitude determination. The SSOC-D60 device measures the incident angle of a sun ray in both axis. It includes a microprocessor that directly provides the sun light incident angles and their derivatives without external calculations, via a digital interface. The device includes MEMS technology with flight heritage, electronic components that are space-grade, and microprocessor included has been tested for the space environment and has flight heritage. The high sensitivity is based on geometrical dimensions of the design. The use of a metal shield and a cover glass minimizes the ageing of the device under high radiation levels. Every sensor is calibrated and characterized. SSOC-D60 has flight heritage since 2009, with hundreds of flight models delivered for different missions.
Properties
Overview
- Name
- SSOC-D60
- Supplier
- Solar MEMS Technologies
- Type
- Sun Sensor
- Flight proven
- Yes
