Overview

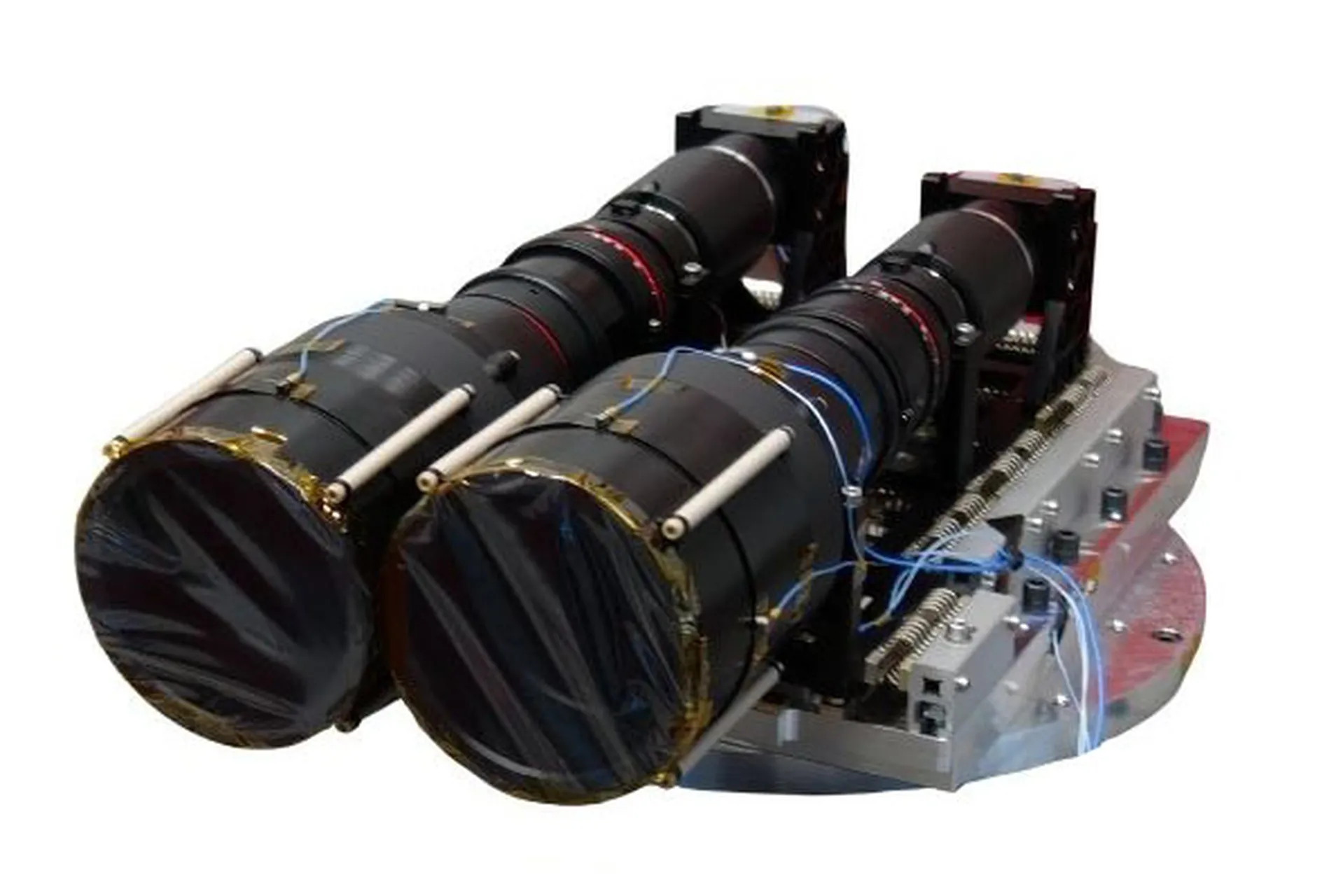

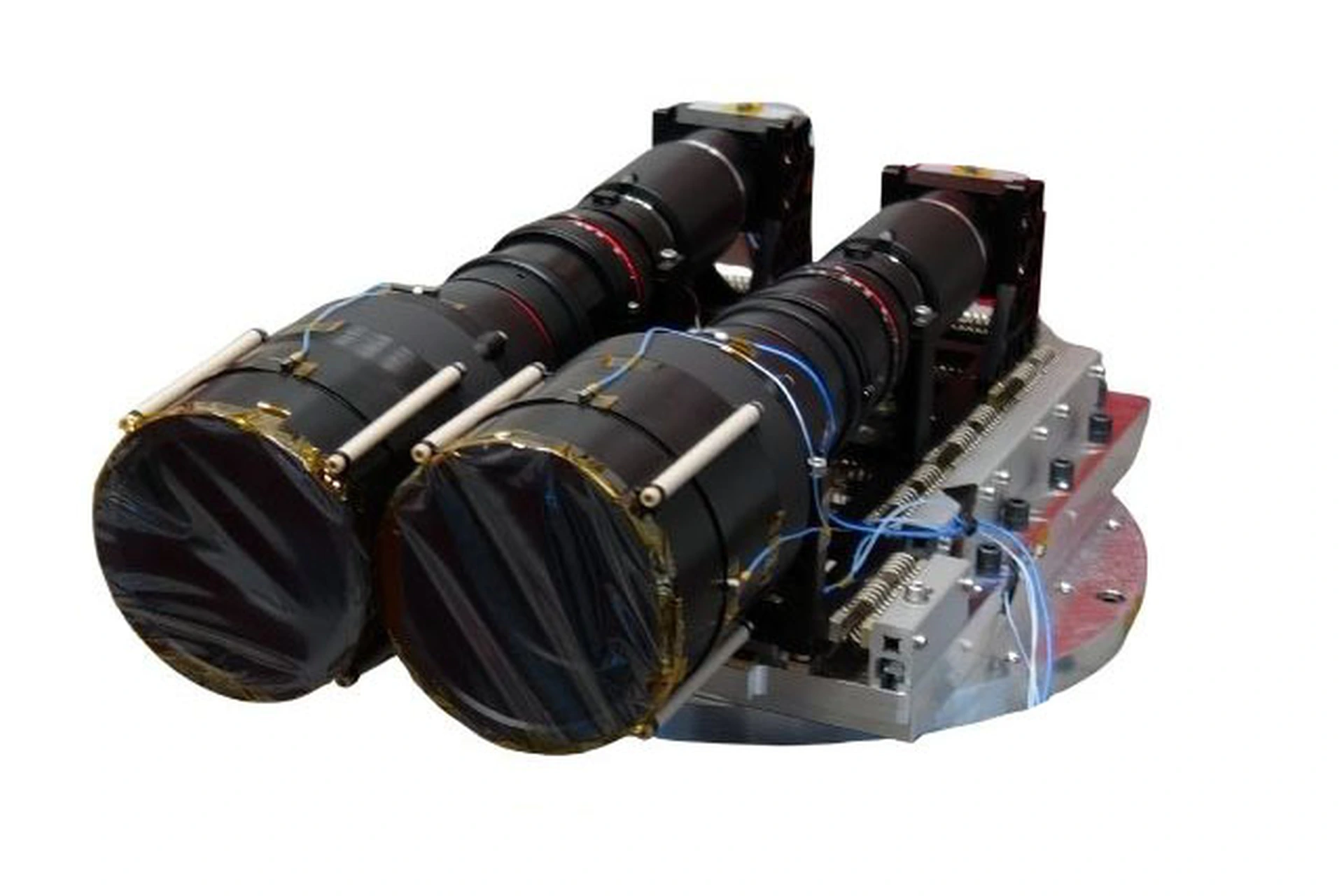

The HRVI-6HD 2nd Generation is the latest version of our heritage line camera systems. It offers 4.6m GSD resolution imagery with a 70 km swath. It also has an hyperspectral option. The payload consists of three sub-units, the DCP (Dual Camera Payload) and two PLSU (Payload Support Unit), one attached to each of the DCP’s two optical heads. Characteristics: - Resolution: (PAN / MS) 4.6m / 9.2m @500 km - Swath: 70 km @ 500 km - Channels: 1 PAN +4 MS - DPU: JPEG, 2 TB storage, CCSDS, Encryption - On Orbit Focusing: Yes - Size: 540 x 320 x 170 mm³ - Mass: 10.45 kg - Design Life: 5 years
Properties
Overview
- Name
- HRVI-6HD 2nd Generation
- Supplier
- Berlin Space Technologies
- Type
- Other
- Flight proven
- Yes
