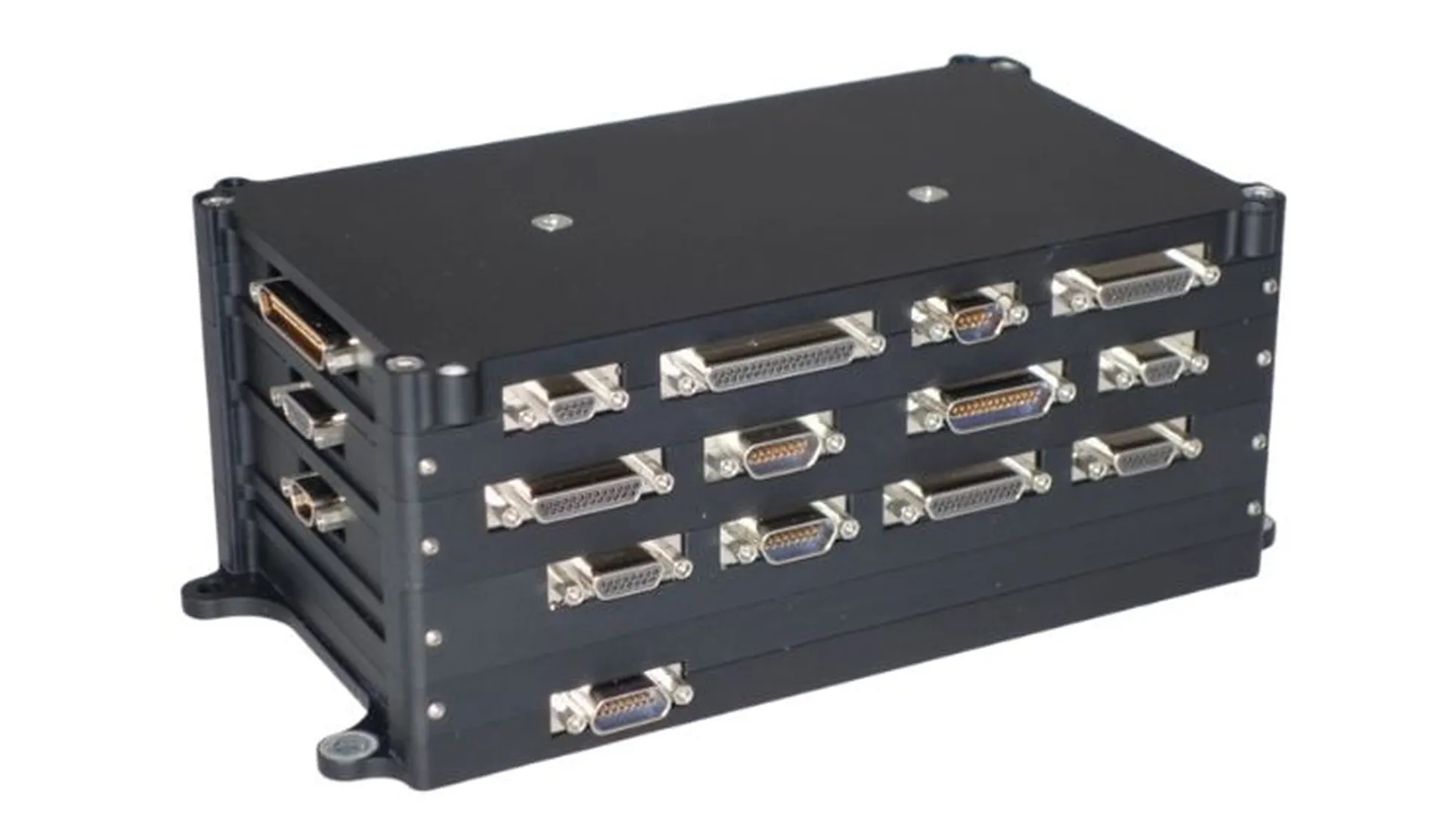

The CDH-110 system consists of two main parts: the OBC-110 and the ACC-110. The OBC-110 is responsible for scheduling all tasks and coordinating TMTC functions of the bus whereas the ACC-110 which is integrated in the same housing runs the attitude algorithm and connects to all ADCS components. Optionally an auxiliary processor can be attached to the OBC-110 that allows centralized operation via a Linux operation system. OBC-110 & ACC-110

Characteristics:

• Dimension: 176x94x69 mm³

• Mass: 815 g

• Data Interfaces: 20x RS422

• Process Power: 90 MIPS

• Time Sync: Yes

• TT&C Operation & Scheduling: Yes

• Design Life: 5 years LEO

• Space Heritage: Yes

High Performance Unit (optional):

• Process Power: 400MIPS

• Operating System: Linux (real time)

• Authentication: Yes

• TMTC Encryption: Yes

• CCSDS Engine: Yes
